13/11/2024

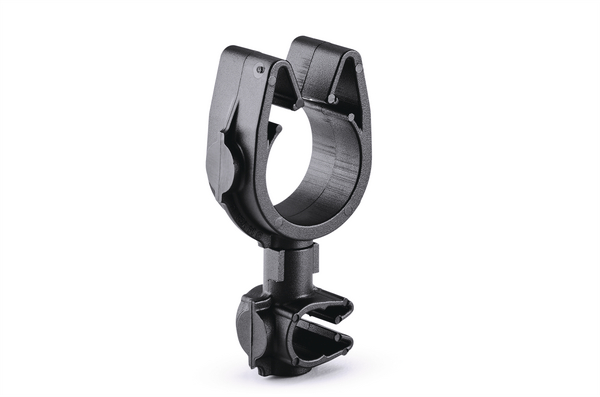

Cable clip with pipe/tube holder, Dmin=6.0mm, Dmax=8.0mm, nom∅=7.0 mm, nom∅2=14.0 mm
Art.-No. 156-01979 | MOC7FMOC14M180-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC7FMOC14M180-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Type MOC7FMOC14M180
    Variant Clip to Clip Transverse
    Bundle Diameter Nom. (ND) 7.0 mm
    Bundle Diameter Nom. 2 (ND2) 14.0 mm
    Bundle Diameter max (metric) 8.0mm
    Bundle ∅ 6.0-8.0mm
    Bundle ∅ 2 max. 15.8mm
    Bundle ∅ 2 min. 13.0mm
    Bundle ∅ min. 6.0mm
    Depth (D) 10.0mm
    Height (H) 20.9mm
    Length (L) 40.83mm
    Length (L2) 21.4mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026716626
    Packaging 1 - Weight (kg) 202.21kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
