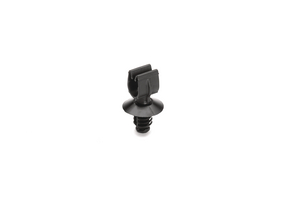

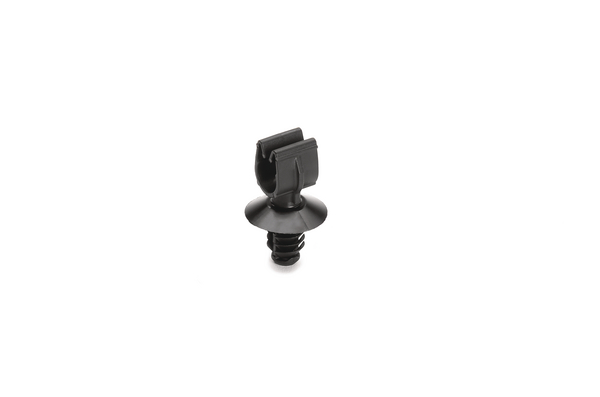

Cable clip for hole (round), T=0.6 - 5.5mm, ∅6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=6.0mm, Dmax=8.0mm, nom∅=7.0 mm, black, 5000
Art.-No. 151-01722
| MOC7FT6.5-PA66HIRHSUV-BK
|
Details
Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
Colour | Black (BK) |
Fixation Method | Fir Tree |
Key product features | removable |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | MOC7FT6.5-PA66HIRHSUV-BK |
Pack Cont. | 5000 |
Package Content packed in | carton |
Type | MOC7FT6.5 |
Bundle Diameter Nom. (ND) | 7.0 mm |
Bundle Diameter max (metric) | 8.0mm |
Bundle ∅ | 6.0-8.0mm |
Bundle ∅ min. | 6.0mm |
Depth (D) | 10.0mm |
Fixing Hole Shape | Circular |
Height (H) | 29.1mm |
Length (L) | 17.0mm |
Panel Thickness max. | 0.6 - 5.5mm |
for Hole ∅ (FH) | 6.1 - 6.9 mm, 6.35 mm (hexagonal) |
for Panel Thickness min - max | 0.6 - 5.5 mm |
