13/11/2024

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom∅=8.0 mm, nom∅2=10.0 mm - 14.0 mm
Art.-No. 156-01857 | MOC8FLOC10-14-PA66HIRHSUV-BK | Details

Add to watchlist

Downloads Datasheet

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	MOC8FLOC10-14-PA66HIRHSUV-BK
Pack Cont.	1000
Package Content packed in	carton
Type	MOC8FLOC10-14
Variant	Clip to Clamp

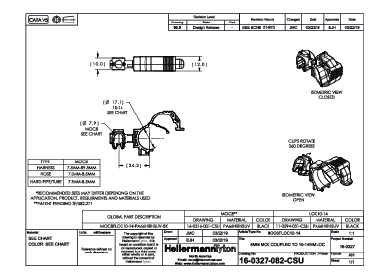

Product Dimensions

Bundle Diameter Nom. (ND)	8.0 mm
Bundle Diameter Nom. 2 (ND2)	10.0 mm - 14.0 mm
Bundle Diameter max (metric)	9.0mm
Bundle ∅	7.0-9.0mm
Bundle ∅ 2 max.	14.0mm
Bundle ∅ 2 min.	10.0mm
Bundle ∅ min.	7.0mm
Depth (D)	12.0mm
Height (H)	27.4mm
Height (H2)	15.20mm
Length (L)	42.60mm
Length (L2)	24.5mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	Yes

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026715582
Packaging 1 - Weight (kg)	203.59kg
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.517525m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Width (m)	0.3175m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
