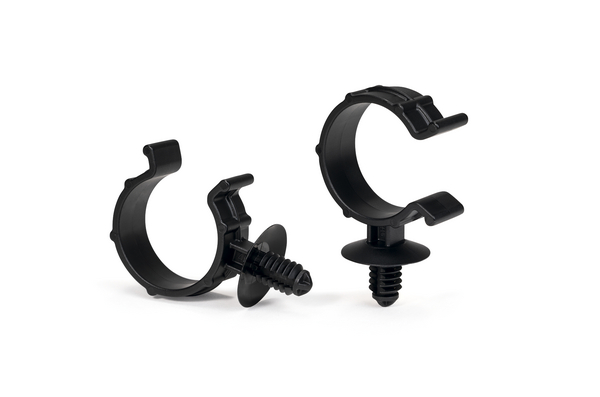

Cable clip, T=0.7-7.0mm, ∅6.3 - 7.0 mm
Art.-No. 151-02815 | OC26-28FT6.5LG-PA66HIRHS-BK |  Details

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Downloads Datasheet
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION OC26-28FT6.5LG-PA66HIRHS-BK
    Pack Cont. 2500pcs.
    Package Content packed in bag
    Type OC26-28FT6.5LG
    Attach to Ø 26.0-28.0
    Height (H) 12.0mm
    Length (L) 50.0mm
    Panel Thickness max. 0.7-7.0mm
    Width (W) 33.7mm
    for Hole ∅ (FH) 6.3 - 7.0 mm
    for Panel Thickness min - max 0.7 - 7 mm
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4031026619149
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
