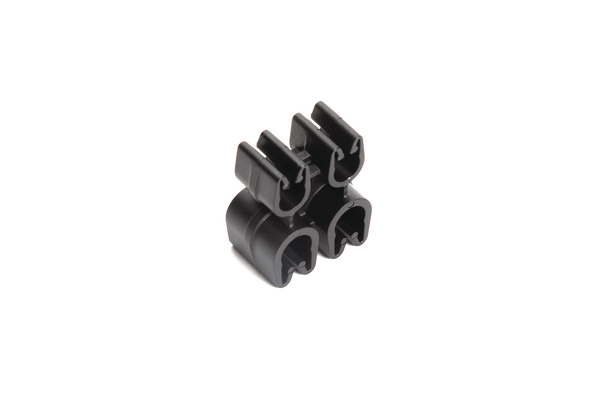

Cable clip, black, 10000pcs.
Art.-No. 151-02452 | PC4X2-5X2-PA66HIRHS-BK |  Details

4x Pipe Clip secures four routings together while keeping them separated, to prevent chafing or heat transfer.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION PC4X2-5X2-PA66HIRHS-BK
    Pack Cont. 10000pcs.
    Package Content packed in bag
    Type PC4X2-5X2
    Height (H) 18.3mm
    Length (L) 16.7mm
    Width (W) 10.0mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026715179
    Packaging 3 - Type box
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
