22/12/2024

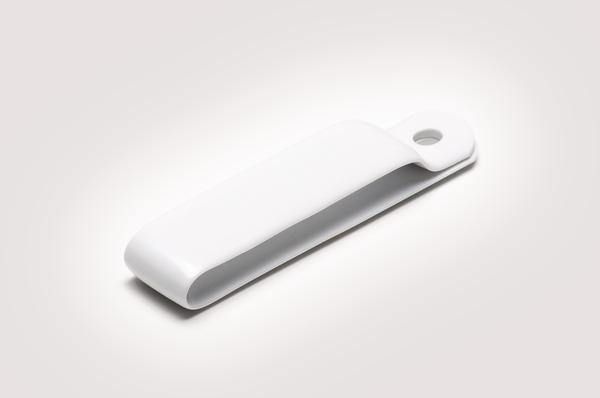

P-clamp closed, ∅4.7 mm, white, 100pcs.
Art.-No. 211-00216 | PFC-PVC-WH Details

  • Manufactured from PVC
  • Self-extinguishing
  • To be used with "Flat Cables"
  • Wide range of sizes for every application
  • Can be used without cable ties
Show more
Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
Colour White (WH)
Fixation Method screw-hole
Material Flexible Polyvinyl Chloride (PVC)
PART DESCRIPTION PFC-PVC-WH
Pack Cont. 100pcs.
Package Content packed in bag
Product Family PFC Series
Product Group Flat ribbon cable clamp
Type PFC
Variant Closed

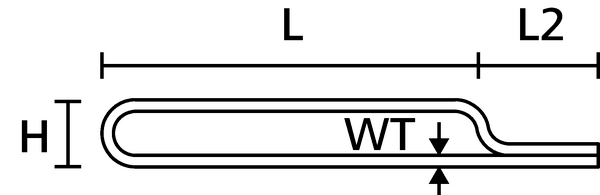

Height (H) 10mm
Length (L) 55mm
Length (L2) 18mm
Wall (WT) 1.8mm
Width (W) 16mm
for Hole ∅ (FH) 4.7 mm
Flammability UL 94 V0
UV-Stabilised No
Country of Origin BR
GTIN-13 / EAN 7890176006530
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
