26/12/2024

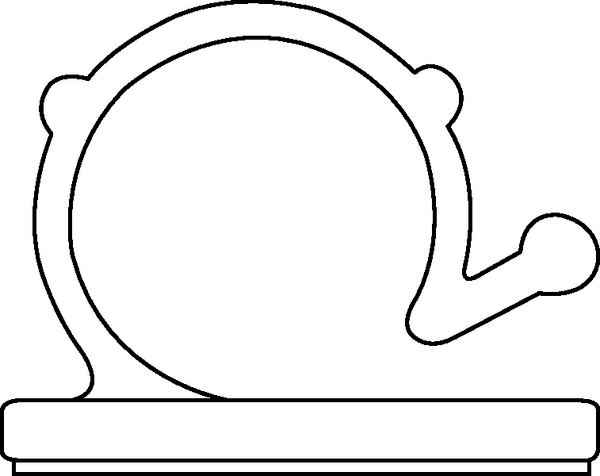

Cable clip for adhesive use/with pipe/tube holder, Dmax=13.0mm
Art.-No. 151-13201 | RA13APT-A-PA66-NA |  Details

Self adhesive one piece fixing clips RA- & RB-Series.

    • One-piece self adhesive mount for quick and easy installation
    • Can be used without cable ties offering process optimization
    • Designed to hold wires, cables or hoses
    • Different sizes for various bundle diameters available
    • Two types of adhesive can be offered
    Show more
    Add to watchlist
    Downloads Datasheet
    Application These mounts are ideal for use in applications which are difficult to access or for areas where self adhesive is the only possible fixing method and fixing holes would be unacceptable. The self adhesive mounts can be used without cable ties. Offering process optimization in industries like automotive, bus and truck, construction vehicles or industrial building.
    Colour Natural (NA)
    Fixation Method Pasting / Stick
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION RA13APT-A-PA66-NA
    Product Family RA-Series
    Product Group Mounts with cable clip, self-adhesive
    Type RA13APT-A
    Variant Closed
    Bundle Diameter max (metric) 13.0mm
    Bundle ∅ 13.0mm
    Height (H) 16.5mm
    Length (L) 25.0mm
    Nominal ∅ 13mm
    Weight/Unit 0.002697kg
    Width (W) 25.0mm
    Width (W2) 10.0mm
    Adhesive Acrylate with base of acrylic foam
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026688541
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.255m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00168m³
    Packaging 1 - Weight (kg) 0.27868kg
    Packaging 1 - Width (m) 0.22m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
