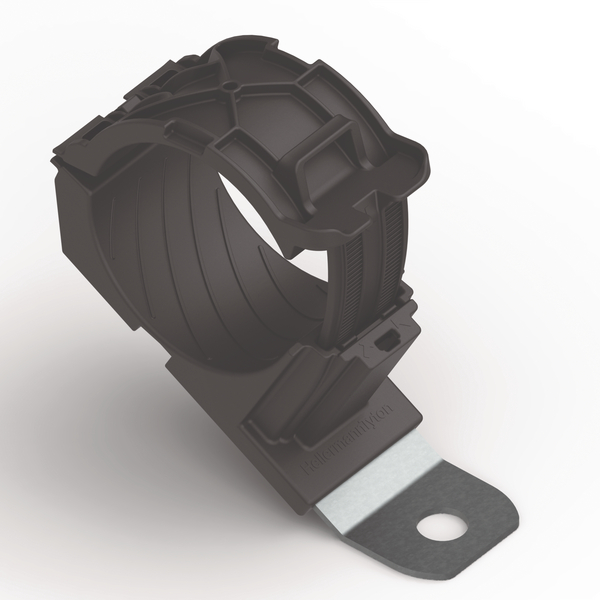

P-clamp short, Dmin=36.0mm, Dmax=51.0mm, ∅6.5 mm, 30°, black, 160pcs.
Art.-No. 151-01665 | RCD30SM6-PA66HIRHSUV/ST/ZN-BK |  Details

    • Ratchet P-Clamp D-Series for bundle diameters from 35.1 mm to 51.0 mm
    • One-piece ratchet closure design allows for easy installation during pre- or final assembly
    • Multiple configurations handle a wide range of diameters and applications, reducing part inventory
    • Clamp interior is designed to guide and center bundle to reduce pinching
    • Easy release feature allows for quick adjustments and maintenance
    • Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
    • Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
    Colour Black (BK)
    Fixation Method Screw Mounting
    Key product features vibration absorbing, reusable, removable, for multiple routing
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN)
    PART DESCRIPTION RCD30SM6-PA66HIRHSUV/ST/ZN-BK
    Pack Cont. 160pcs.
    Package Content packed in box
    Product Family For bundle diameters from 36.0 mm to 51.0 mm, D-Series
    Product Group Ratchet P-Clamp
    Short Description Fixing element 178.8x34.9 mm, bundle diameter: 36-51 mm, M6, black
    Type RCD30SM6
    Variant Short
    Angle 30
    Bundle Diameter max (metric) 51.0mm
    Bundle ∅ 36.0-51.0mm
    Bundle ∅ min. 36.0mm
    Fixing Hole Centres (F) 2.2"
    Fixing Hole Centres (F) 55.9mm
    Length (L) 178.8mm
    Length (L2) 102.4mm
    Min.Tensile Strength 445N
    Strap Width max. (G) 0.52"
    Strap Width max. (G) 13.2mm
    Stud ∅ M6
    Weight/Unit 0.04516kg
    Width (W) 34.9mm
    Width (W2) 30.0mm
    for Hole ∅ (FH) 6.5 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    Stamping Material Steel (ST)
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026566160
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 160
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 7.9956kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 2400
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 140.934kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
