02/11/2024

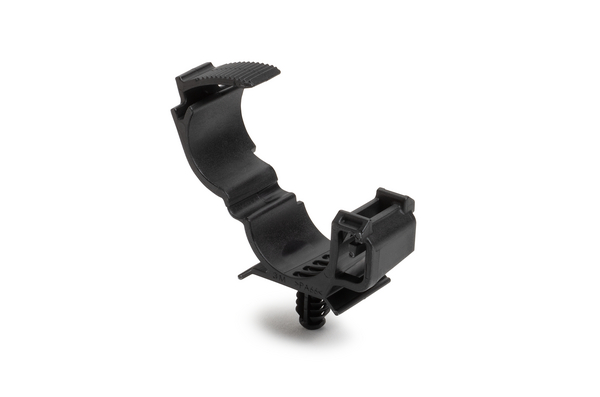

Ratchet O-Clamp
Art.-No. 151-04351 | ROC18.5-22.5FT6.5-PA66HIRHSUV-BK |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION ROC18.5-22.5FT6.5-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group Ratchet O-Clamp
    Type ROC18.5-22.5FT6.5
    Bundle Diameter max (metric) 22.5mm
    Bundle ∅ 18.5-22.5mm
    Bundle ∅ min. 18.5mm
    Fixing Hole Shape Circular, Hexagon
    Height (H) 46.0mm
    Length (L) 37.0mm
    Min.Tensile Strength 445N
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 20.5mm
    for Hole ∅ (FH) 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026752532
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
