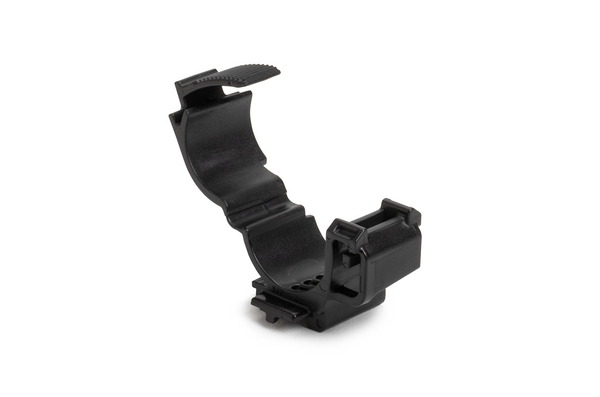

Ratchet O-Clamp
Art.-No. 151-04349 | ROC18.5-22.5SLOT17-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Connector Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION ROC18.5-22.5SLOT17-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group Ratchet O-Clamp
    Type ROC18.5-22.5SLOT17
    Type of connection USCAR17
    Bundle Diameter max (metric) 22.5mm
    Bundle ∅ 18.5-22.5mm
    Bundle ∅ min. 18.5mm
    Height (H) 37.0mm
    Length (L) 37.0mm
    Min.Tensile Strength 445N
    Width (W) 25.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026752563
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
