27/12/2024

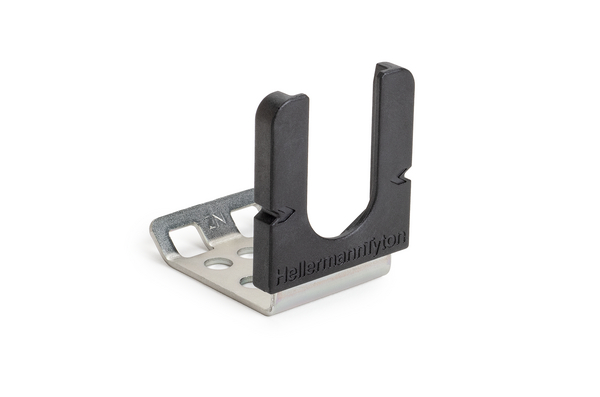

SENMT18M6-PPS/ST/ZN-BK
Art.-No. 151-04215 | SENMT18M6-PPS/ST/ZN-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Screw Mounting
    For Ties T18 - T50
    Material Polyphenylene Sulfide (PPS), Steel (ST), Zinc plated (ZN)
    Mounting Screw Type #10 (M6) Screw
    PART DESCRIPTION SENMT18M6-PPS/ST/ZN-BK
    Pack Cont. 1
    Package Content packed in bag
    Type SENMT18M6

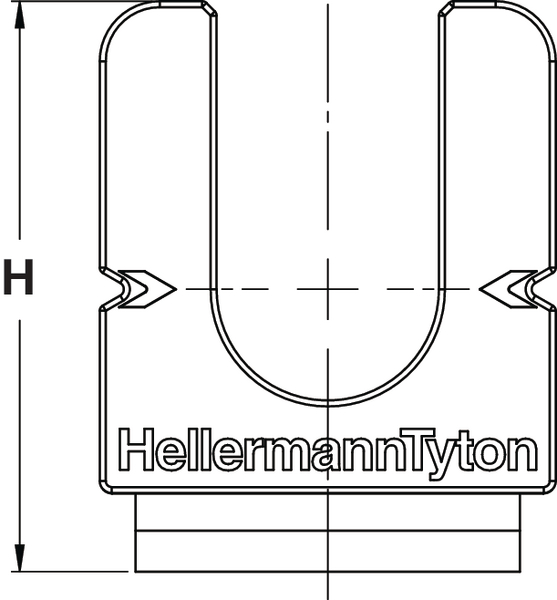

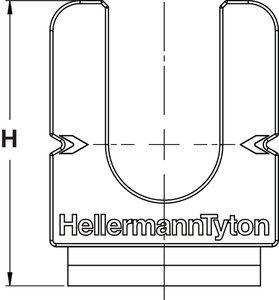

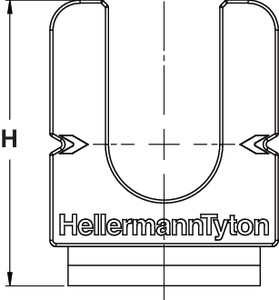

    Height (H) 47.5mm

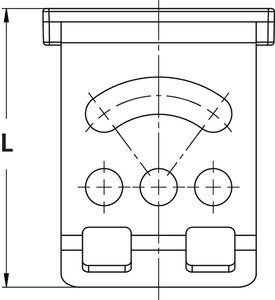

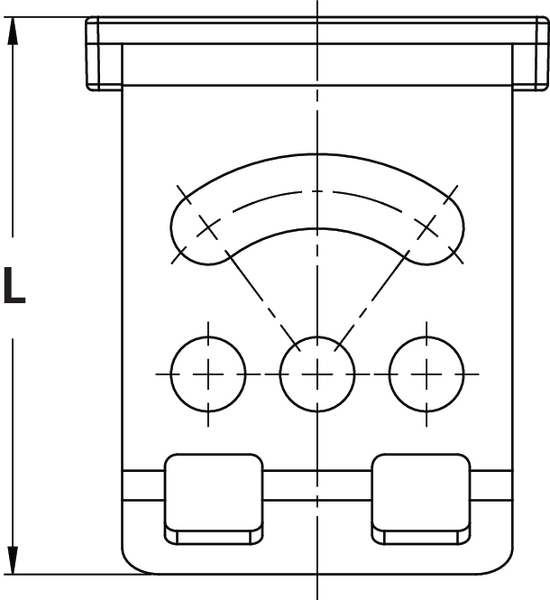

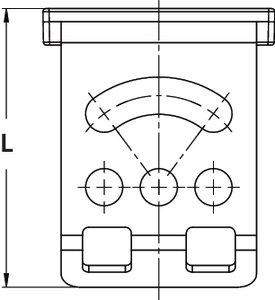

    Length (L) 45.7mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.08mm

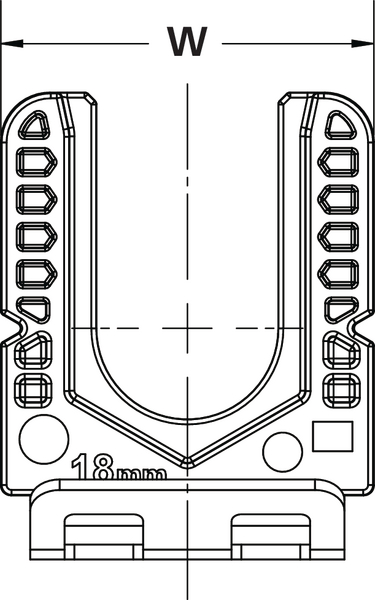

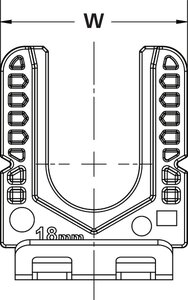

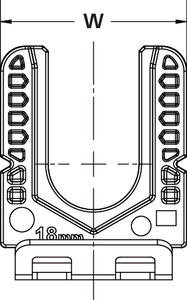

    Width (W) 38.0mm
    for Hole ∅ (FH) 4.3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026741307
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
