02/11/2024

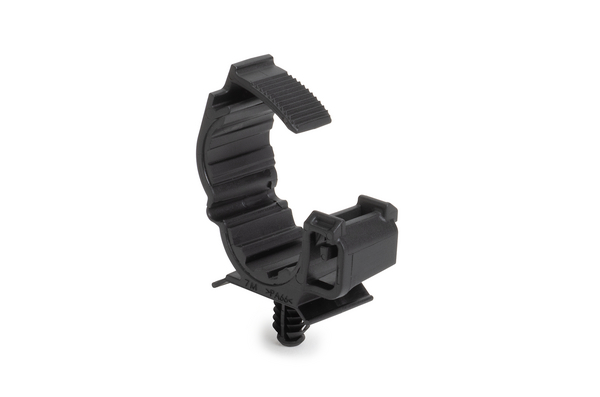

Ratchet O-Clamp
Art.-No. 151-04075 | SGROC15.5-20FT6.5-PA66HIRHSUV/TPE-BK |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION SGROC15.5-20FT6.5-PA66HIRHSUV/TPE-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group Ratchet O-Clamp
    Type SGROC15.5-20FT6.5
    Bundle Diameter max (metric) 20.0mm
    Bundle ∅ 15.5-20.0mm
    Bundle ∅ min. 15.5mm
    Fixing Hole Shape Circular, Hexagon
    Height (H) 46.0mm
    Length (L) 37.0mm
    Min.Tensile Strength 445N
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.008kg

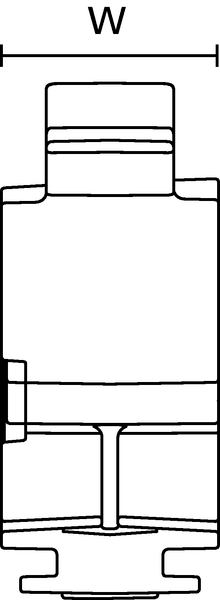

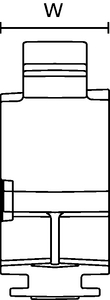

    Width (W) 20.5mm
    for Hole ∅ (FH) 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026733111
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 8.77kg
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Height (m) 1.239m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 15000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.189m³
    Packaging 4 - Weight (kg) 152.55kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
