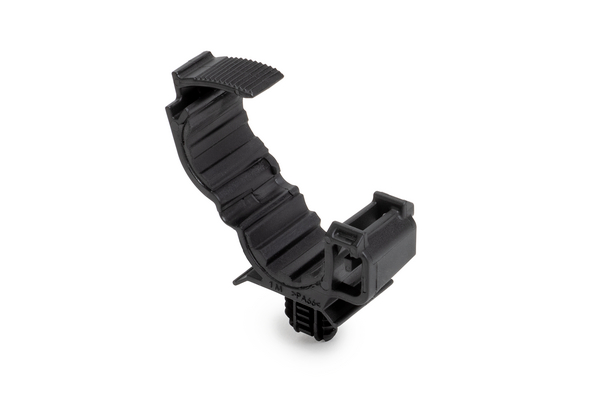

Ratchet O-Clamp
Art.-No. 151-04076 | SGROC15.5-20FTOVAL-PA66HIRHSUV/TPE-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION SGROC15.5-20FTOVAL-PA66HIRHSUV/TPE-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Product Group Ratchet O-Clamp
    Type SGROC15.5-20FTOVAL
    Bundle Diameter max (metric) 20.0mm
    Bundle ∅ 15.5-20.0mm
    Bundle ∅ min. 15.5mm
    Fixing Hole Shape Oval
    Height (H) 46.0mm
    Length (L) 37.0mm
    Min.Tensile Strength 445N
    Panel Thickness max. 0.6 - 6.75mm
    Width (W) 20.5mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026733128
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
