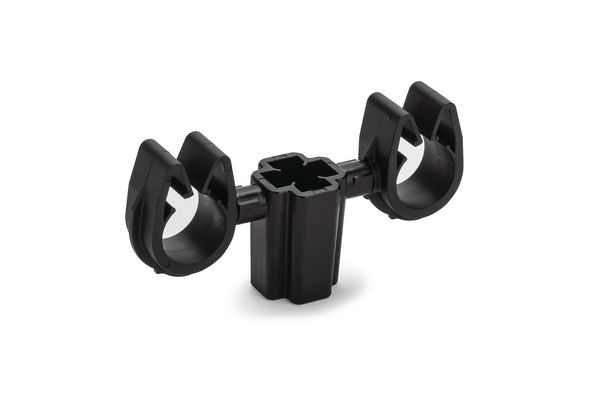

Cable clip for stud, ∅5.0 mm/6.0 mm, Dmin=9.5mm, Dmax=11.5mm, nom∅=10.0 mm, nom∅2=10.0 mm, ∅5.0 mm/6.0 mm
Art.-No. 156-04247
| SMF2MOC10MX2-PA66HIRHSUV-BK
|
Details
| Application | Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.). |
| Colour | Black (BK) |
| Fixation Method | Stud Mount |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | SMF2MOC10MX2-PA66HIRHSUV-BK |
| Pack Cont. | 1000 |
| Package Content packed in | bag |
| Releasable Closure (Yes/No) | No |
| Type | SMF2MOC10MX2 |
| Bundle Diameter Nom. (ND) | 10.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 10.0 mm |
| Bundle Diameter max (metric) | 11.5mm |
| Bundle ∅ | 9.5-11.5mm |
| Bundle ∅ 2 max. | 11.5mm |
| Bundle ∅ 2 min. | 9.5mm |
| Bundle ∅ min. | 9.5mm |
| Depth (D) | 15.5mm |
| Height (H) | 28.9mm |
| Height (H2) | 17.8mm |
| Length (L) | 60.0mm |
| Length (L2) | 43.0mm |
| Stud ∅ | 0.20 ";0.24" |
| Stud ∅ | 5.0 mm, 6.0 mm |
| for Hole ∅ (FH) | 5.0 mm, 6.0 mm |
Download
| Country of Origin | MX |
| GTIN-13 / EAN | 4031026697581 |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.516m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0331m³ |
| Packaging 3 - Weight (kg) | 5.43kg |
| Packaging 3 - Width (m) | 0.314m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
