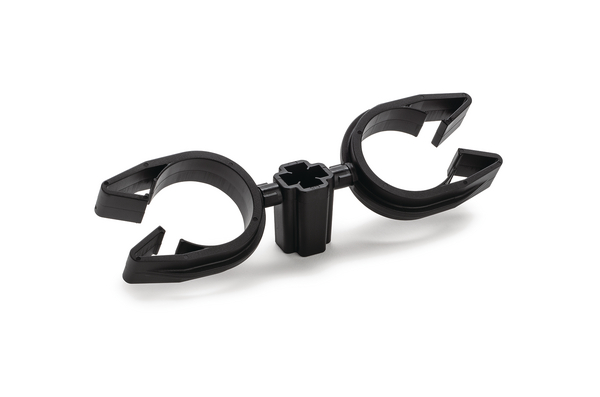

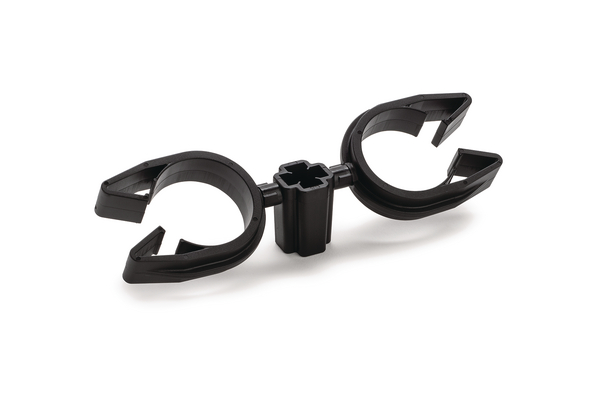

Cable clip for stud, nom∅=26, nom∅2=26.0, ∅5.0 mm/6.0 mm
Art.-No. 156-02841 | SMF2MOC26M180X2-PA66HIRHSUV-BK |  Details

    • Attach before installing pipe or hose

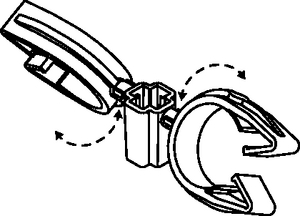

    • Parts labelled 'I' are interlockable for more installation options
    • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
    Add to watchlist
    Downloads Datasheet
    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION SMF2MOC26M180X2-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Type SMF2MOC26M180X2

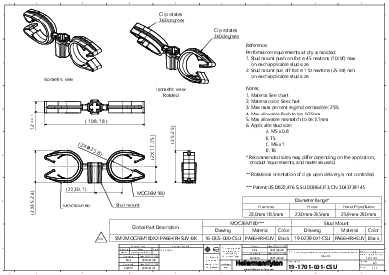

    Bundle Diameter Nom. (ND) 26
    Bundle Diameter Nom. 2 (ND2) 26.0
    Depth (D) 15.5mm
    Height (H) 25.3mm
    Height (H2) 17.8mm
    Length (L) 108.2mm
    Length (L2) 60.2mm
    Stud ∅ 5.0 mm, 6.0 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +110 °C
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026635378
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
