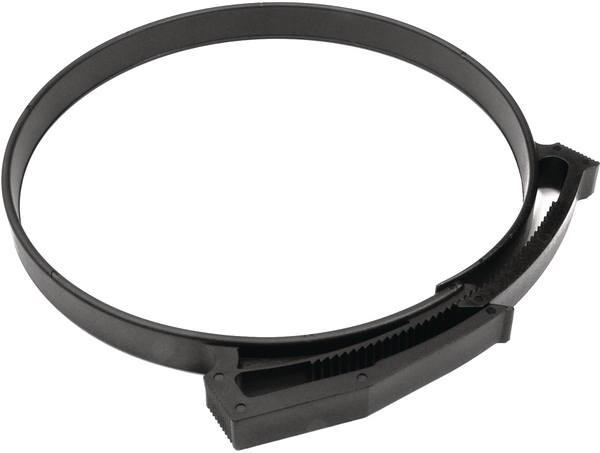

Plastic hose clamp, ∅104.7-119.0mm, black, 25pcs.
Art.-No. 190-00053 | SNP101-PA66GF13-BK |  Details

Designed for quick, ratcheted installation and can be released and reused.

    Add to watchlist
    Downloads Datasheet
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour Black (BK)
    Fixation Method Plug-in mounting
    Material Polyamide 6.6, glass-fibre reinforced (PA66GF13)
    PART DESCRIPTION SNP101-PA66GF13-BK
    Pack Cont. 25pcs.
    Package Content packed in bag
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Type SNP101
    Variant Closed
    Bundle Diameter max (metric) 119.0mm
    Bundle ∅ 104.7-119.0mm
    Bundle ∅ min. 104.7mm
    Wall (WT) 2.525mm
    Wall (WT) .099"
    Width (W) max. 108.27mm
    Width (W) min. 61.61mm
    Width (W) min. 2.426"
    Width (W2) 11.31mm
    ∅ D max. 4.718"
    ∅ D max. 119.88mm
    ∅ D min. 104.65mm
    ∅ D min. 4.121"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026415871
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.511m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Width (m) 0.311m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
