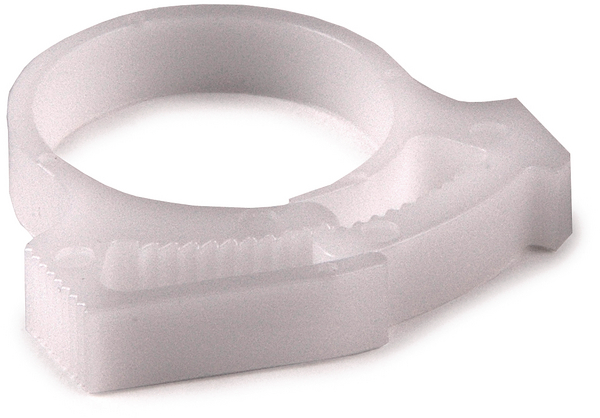

Plastic hose clamp, ∅22.5-25.5mm, white, 100pcs.
Art.-No. 190-00275 | SNP19-POM-WH |  Details

Designed for quick, ratcheted installation and can be released and reused.

    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour White (WH)
    Fixation Method Plug-in mounting
    Material Polyacetal (POM)
    PART DESCRIPTION SNP19-POM-WH
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Type SNP19
    Variant Closed
    Bundle Diameter max (metric) 25.5mm
    Bundle ∅ 22.5-25.5mm
    Bundle ∅ min. 22.5mm
    Wall (WT) 1.6mm
    Width (W) 35.4mm
    Width (W) max. 35.4mm
    Width (W) min. 24.0mm
    Width (W2) 5.9mm
    Flammability UL 94 HB
    Operating Temperature -50 °C to +95 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin JP
    GTIN-13 / EAN 4944387501902
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
