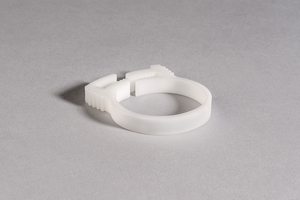

Plastic hose clamp, ∅30.3-33.1mm, natural, 200pcs.
Art.-No. 191-10329 | SNP32(E)-POM-NA |  Details

Designed for quick, ratcheted installation and can be released and reused.

    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour Natural (NA)
    Fixation Method Plug-in mounting
    Material Polyacetal (POM)
    PART DESCRIPTION SNP32(E)-POM-NA
    Pack Cont. 200pcs.
    Package Content packed in pcs.
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Short Description Snapper Hose Clip for Tubes and Harnesses natural
    Type SNP32(E)
    Variant Closed
    Bundle Diameter max (metric) 33.1mm
    Bundle ∅ 30.3-33.1mm
    Bundle ∅ min. 30.3mm
    Wall (WT) 2.0mm
    Weight/Unit 0.0038kg
    Width (W) max. 34.0mm
    Width (W) min. 27.0mm
    Width (W2) 7.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 5022660317958
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.305m
    Packaging 1 - Qty 200
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00581m³
    Packaging 1 - Weight (kg) 0.76kg
    Packaging 1 - Width (m) 0.381m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
