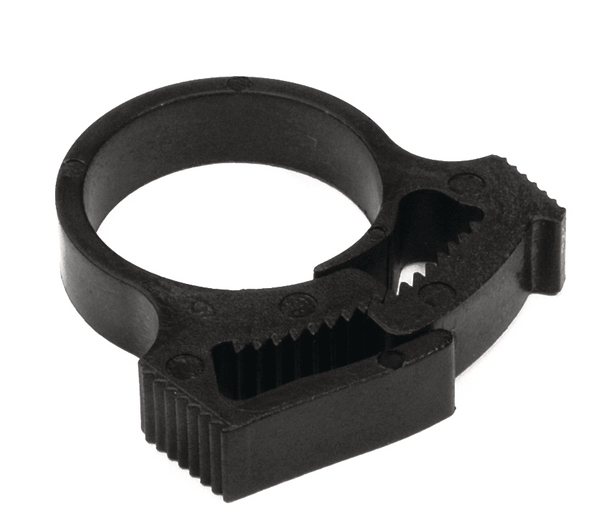

Plastic hose clamp, ∅13.1-15.0mm, black, 100pcs.
Art.-No. 192-10080
| SNP8-PA66GF13-BK
|
Details
- Releasable and reusable plastic hose clamps
- Self-locking
- Releasable by giving a lateral movement to the 'head'
- Installation by hand possible
- Installation with processing tool for a secure tensioning
- For higher operating temperatures: Glass Filled PA66
More products in this product group:
| Application | Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering. |
| Colour | Black (BK) |
| Fixation Method | Plug-in mounting |
| Material | Polyamide 6.6, glass-fibre reinforced (PA66GF13) |
| PART DESCRIPTION | SNP8-PA66GF13-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | SNP-Series |
| Product Group | Snapper hose clips for tubes and harnesses |
| Short Description | Snapper Hose Clip for Tubes and Harnesses black |
| Type | SNP8 |
| Variant | Closed |
|
|
| Bundle Diameter max (metric) | 15.0mm |
| Bundle ∅ | 13.1-15.0mm |
| Bundle ∅ min. | 13.1mm |
| Nominal ∅ | 0.5" |
| Nominal ∅ | 14mm |
| Wall (WT) | .07" |
| Wall (WT) | 1.7mm |
| Weight/Unit | 0.0018kg |
| Width (W) max. | 24.9mm |
| Width (W) min. | 16.7mm |
| Width (W) min. | 0.657" |
| Width (W2) | 5.7mm |
| ∅ D max. | 15.01mm |
| ∅ D max. | 0.591" |
| ∅ D min. | 13.11mm |
| ∅ D min. | 0.516" |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Nato number | 4730-12-321-3178 |
| Operating Temperature | -40 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026128528 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.18m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00144m³ |
| Packaging 1 - Weight (kg) | 0.180001kg |
| Packaging 1 - Width (m) | 0.16m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 9.62005kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 213.4kg |
| Packaging 4 - Width (m) | 0.8m |
