22/11/2024

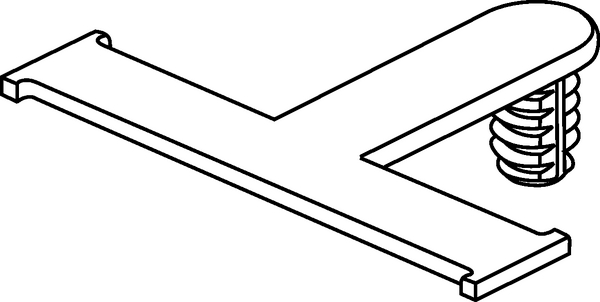

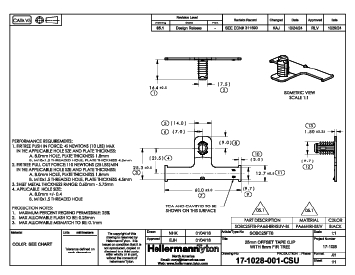

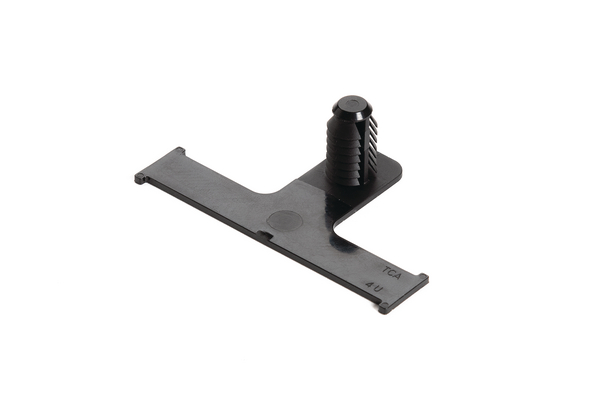

Bundling clip for hole (round), L=60.0mm, SO=25.3mm, black, 5000pcs.
Art.-No. 151-02457 | SOBC25FT8-PA66HIRHSUV-BK Details

Colour Black (BK)
Fixation Method Fir Tree
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION SOBC25FT8-PA66HIRHSUV-BK
Pack Cont. 5000pcs.
Package Content packed in bag
Type SOBC25FT8
Bundling Bar Length 60.0mm
Height (H) 17.9mm
Length (L) 60.0mm
Offset Length 25.3mm
Panel Thickness max. 0.6 - 5.75mm
Weight/Unit 0.002kg
Width (W) 35.0mm
for Hole ∅ (FH) 7.6 - 8.4 mm, M10 x 1.5
for Panel Thickness min - max 0.6 - 5.8 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant No
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026715056

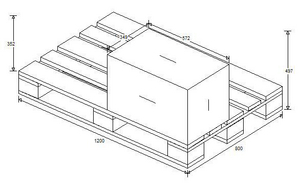

Packaging 3 - Height (m) 0.35242499999999995m
Packaging 3 - Length (m) 0.5715m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0703
Packaging 3 - Weight (kg) 10.73kg
Packaging 3 - Width (m) 0.34925m

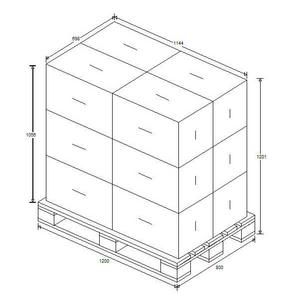

Packaging 4 - Height (m) 1.2m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.152
Packaging 4 - Weight (kg) 149.76kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
