31/03/2025

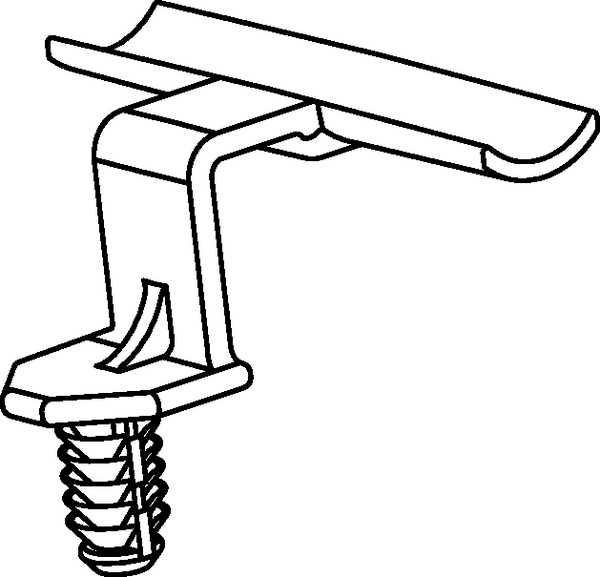

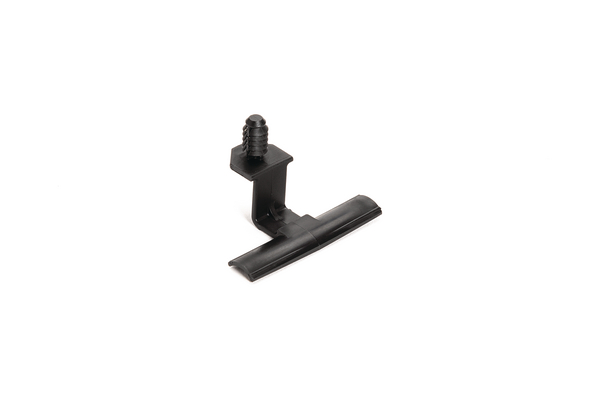

Bundling clip for hole (round), L=50.0mm, SO=22.6mm, black, 1500pcs.
Art.-No. 133-03836 | SOC23SO18-PA66HIRHS-BK

Copied
  • Fir tree design provides low insertion force and high extraction force ideal for simple, secure performance in a 6.5 mm (+/-0.4) hole.
  • Standoff design secures the bundle away from the mounting hole and areas that could cause damage due to rubbing.
  • Clip can be installed by hand – no need for hardware or tools.
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Black (BK)
Fixation Method Fir Tree
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION SOC23SO18-PA66HIRHS-BK
Pack Cont. 1500pcs.
Package Content packed in carton
Short Description Bundling clip for hole (round), L=50.0mm, SO=22.6mm, black, 1500pcs.
Type SOC23SO18
Bundling Bar Length 50.0mm
Height (H) 31.2mm
Length (L) 50.0mm
Length (L2) 22.6mm
Offset Length 22.6mm
Panel Thickness max. 0.6 - 4.7mm
Weight/Unit 0.002467kg
Width (W) 35.56mm
for Hole ⌀ (FH) 6.1 - 6.9 mm
for Panel Thickness min - max 0.6 - 4.7 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026619354
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.56m
Packaging 1 - Qty 1500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.02814
Packaging 1 - Weight (kg) 3.700501kg
Packaging 1 - Width (m) 0.335m
Packaging 3 - Height (m) 0.175m
Packaging 3 - Length (m) 0.565m
Packaging 3 - Qty 1500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0336
Packaging 3 - Weight (kg) 4.201kg
Packaging 3 - Width (m) 0.34m
Packaging 4 - Height (m) 1.195m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.147
Packaging 4 - Weight (kg) 121.812kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
