22/11/2024

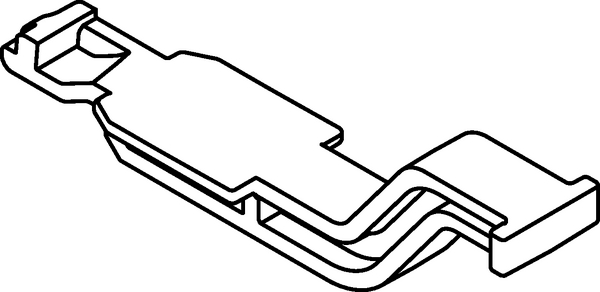

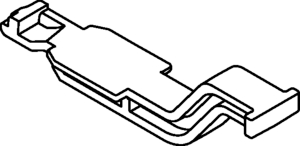

Connector clip for connector, black, 5000pcs.
Art.-No. 151-02551 | SOC25SO9CC11-POM-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyacetal (POM)
    PART DESCRIPTION SOC25SO9CC11-POM-BK
    Pack Cont. 5000pcs.
    Package Content packed in carton
    Type SOC25SO9CC11
    Bundling Bar Length 50.0mm
    Height (H) 13.7mm
    Length (L) 50.0mm
    Width (W) 10.85mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026717593
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Weight (kg) 9.03kg
    Packaging 3 - Width (m) 0.3413252m
    Packaging 4 - Qty 180000
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
