18/11/2024

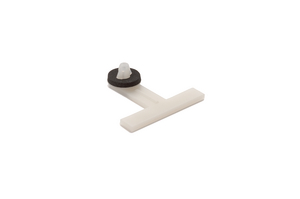

Bundling clip for hole (round), L=50.0mm, SO=36.0mm, black, 500pcs.
Art.-No. 151-01360 | SOC30D6-MD-PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC30D6-MD-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Round holes, sealed
    Product Group Bundling Clips with Arrowhead for Distance Routing
    Type SOC30D6-MD
    Bundling Bar Length 50.0mm
    Height (H) 13.0mm
    Length (L) 50.0mm
    Length (L2) 36.0mm
    Offset Length 36.0mm
    Panel Thickness max. 0.7 - 1.2mm
    for Hole ∅ (FH) 6.4 - 7.1 mm, 6.1 - 6.6 mm (hexagonal)
    for Panel Thickness min - max 0.7 - 1.2 mm
    Country of Origin SG
    GTIN-13 / EAN 4031026520179
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
