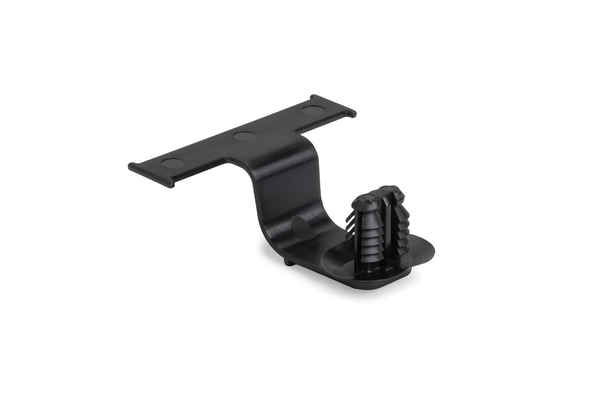

Bundling clip for hole (oval), L=50.0mm, SO=37.0mm, black, 1000pcs.
Art.-No. 151-03026
| SOC37FTOVAL-PA66HIRHSUV-BK
|
Details
| Application | These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | SOC37FTOVAL-PA66HIRHSUV-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Type | SOC37FTOVAL |
| Bundling Bar Length | 1.97" |
| Bundling Bar Length | 50.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 19.1mm |
| Hole Depth | 0.6mm |
| Hole Depth | 6.75mm |
| Length (L) | 50.0mm |
| Offset Length | 37.0mm |
| Panel Thickness max. | 0.6 - 6.75mm |
| Weight/Unit | 0.003176kg |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026629476 |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 6.352kg |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 7.122kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Height (m) | 1.239m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.189m³ |
| Packaging 4 - Weight (kg) | 127.83kg |
| Packaging 4 - Width (m) | 0.8m |
