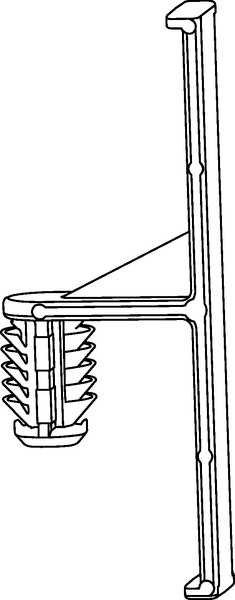

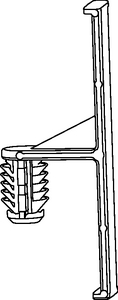

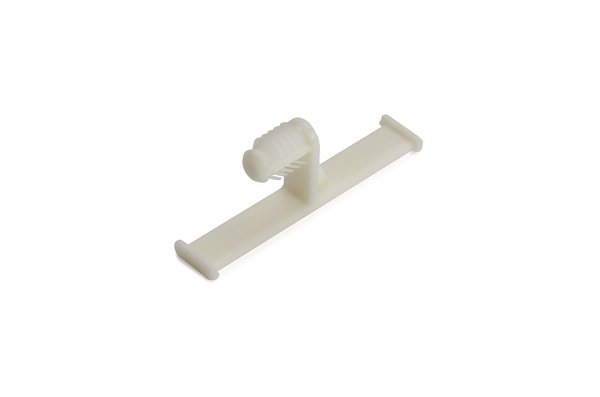

Bundling clip for hole (round), L=61.0mm, SO=15.9mm, natural, 2500pcs.
Art.-No. 151-02432 | SOC8FT8-PA66HIRHS-NA |  Details

The bundle fastens to the tape bar using tape or cable ties.

    Add to watchlist
    Downloads Datasheet
    Colour Natural (NA)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC8FT8-PA66HIRHS-NA
    Pack Cont. 2500pcs.
    Package Content packed in bag
    Type SOC8FT8
    Bundling Bar Length 2.40"
    Bundling Bar Length 61.0mm
    Height (H) 22.4mm
    Length (L) 61mm
    Length (L2) 15.9mm
    Offset Length 15.9mm
    Panel Thickness max. 0.6 - 5.5mm
    Weight/Unit 0.00184kg
    Width (W) 12.0mm
    for Hole ∅ (FH) 7.6 - 10.0 mm, M10 x 1.5
    for Panel Thickness min - max 0.6 - 5.5 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026702247
    Packaging 1 - Qty 2500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 4.600001kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 5.210001kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 50000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 125.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
