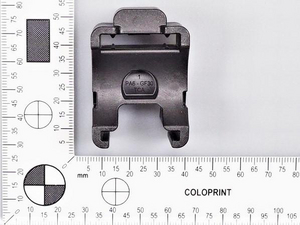

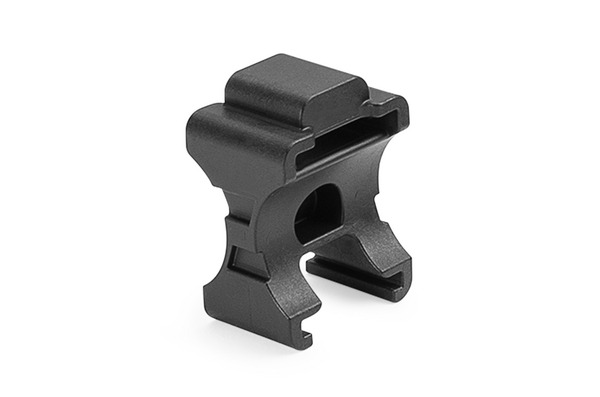

Screwed Ratchet Clamp
Art.-No. 151-03690 | SRC-BS-PA6GF30-BK |  Details

    • Cables and tubes can be bundled in parallel
    • Can be opened and closed with one hand and without tools due to lever on the sliding element
    • Re-openable, thus cables can be exchanged and added when required
    • Can be screwed vertically or horizontally depending on the equipment
    • After being screwed the locking cover/ lever is pushed onto the cable
    • Allows a flexible accommodation of the cables with regards to the number of cables to be routed
    Show more
    Add to watchlist
    Downloads

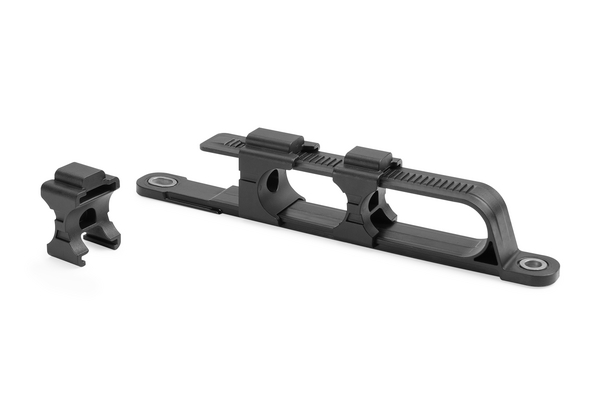

    Application The Screwed Ratchet Clamp can be used wherever cables are to be laid in parallel. The clamp can be mounted both horizontally and vertically. In the second assembly step the cables can be inserted. The component can be used to fix various cables or cable combinations as it can be filled in a range from 25 to 150 mm.
    Colour Black (BK)
    Key product features vibration absorbing, for multiple routing
    Material Polyamide 6, glass-fibre reinforced (PA6GF30)
    PART DESCRIPTION SRC-BS-PA6GF30-BK
    Pack Cont. 25pcs.

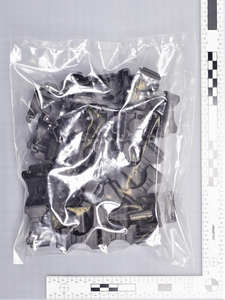

    Package Content packed in bag
    Product Family for multiple parallel cable routing
    Product Group Screwed Ratchet Clamp
    Type SRC-BS
    Weight/Unit 0.01323kg
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026689388
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.2m
    Packaging 1 - Qty 25
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00128m³
    Packaging 1 - Weight (kg) 0.33973kg
    Packaging 1 - Width (m) 0.16m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 800
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.52136kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 16000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 251.44kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
