Cable clip for adhesive use, Dmax=25.4mm
Art.-No. 151-00280 | SRCI1000-PVC-BGE |  Details

Rubber based adhesive allows for a permanent bond to most surfaces.

    Add to watchlist
    Downloads Datasheet
    Colour Ivory (IV)
    Key product features lockable, self adhesive
    Material Polyvinylchloride (PVC)
    PART DESCRIPTION SRCI1000-PVC-BGE
    Pack Cont. 50pcs.
    Package Content packed in bag
    Type SRCI1000
    Bundle Diameter max (metric) 25.4mm
    Bundle ∅ 25.4mm

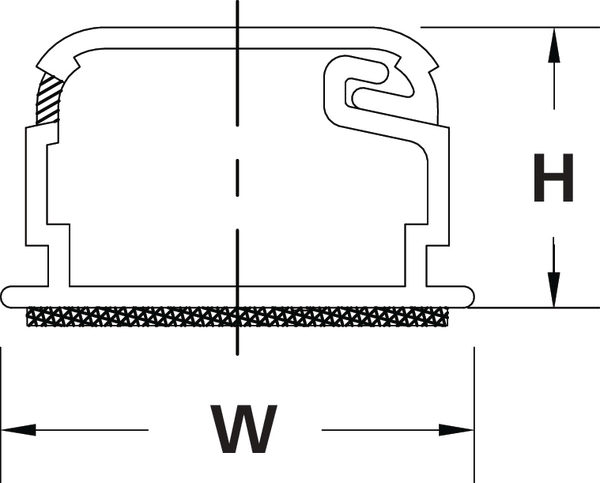

    Height (H) 25.40mm
    Length (L) 44.45mm
    Width (W) 47.8mm
    Width (W2) 44.2mm
    Adhesive Rubber
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0 (excluding adhesive)
    Operating Temperature +50 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026725673
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
