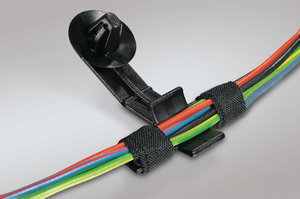

Bundling clip for hole (round), L=40.0mm, SO=31.0mm, black, 500pcs.
Art.-No. 150-45397
| STAND OFF CLIP-PA66HIRHS-BK
|
Details
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Versions for oval holes feature anti-twist protection
More products in this product group:
| Anti rotation (Yes / No) | YES |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | STAND OFF CLIP-PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | SOC for distance routing 31.0 mm |
| Product Group | Bundling Clips with Arrowhead for Distance Routing |
| Short Description | Bundling Clip, round hole 6.5 - 6.8 mm, arrow head, offset, high impact modified, heat stabilised, black |
| Type | STAND OFF CLIP |
| Wings on clip base (Yes / No) | NO |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026120980 |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 1.0kg |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 12.82kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 174.84kg |
| Packaging 4 - Width (m) | 0.8m |
STAND OFF CLIP
150-45398
