28/12/2024

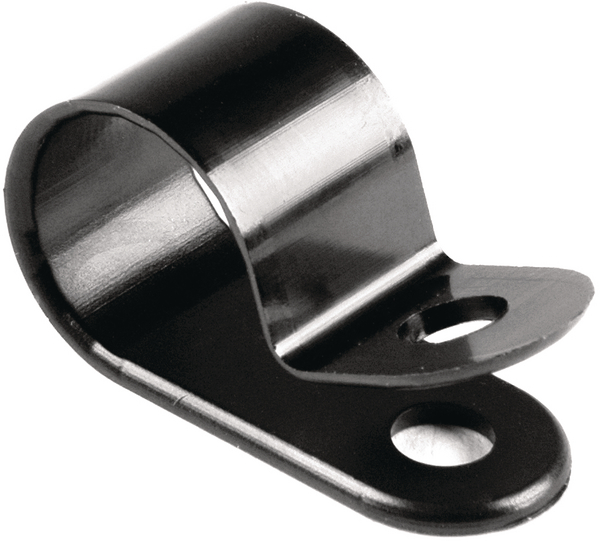

P-clamp closed, Dmax=3.18mm, ∅5.1 mm, black, 1000pcs.
Art.-No. 211-00131 | T3D0125-PA66-BK |  Details

P-Clamps H1P - H18P in different dimensions.

    This product is not available anymore.
    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Add to watchlist
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T3D0125-PA66-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Type T3D0125
    Variant Closed
    Bundle Diameter max (metric) 3.18mm
    Bundle ∅ 3.18mm
    Fixing Hole Centres (F) 0.329"
    Fixing Hole Centres (F) 8.36mm
    Wall (WT) 1.3mm
    Wall (WT) .050"

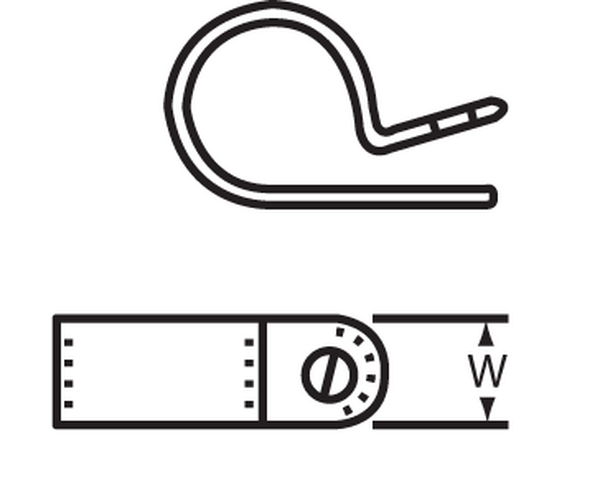

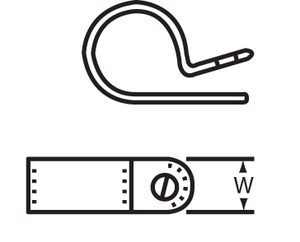

    Width (W) 9.53mm
    for Hole ∅ (FH) 5.1 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Recognized (US and Canada) Yes
    UV-Stabilised No
    Country of Origin US
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
