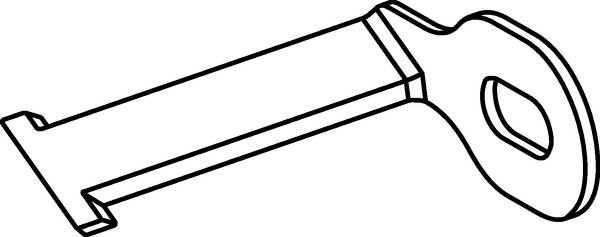

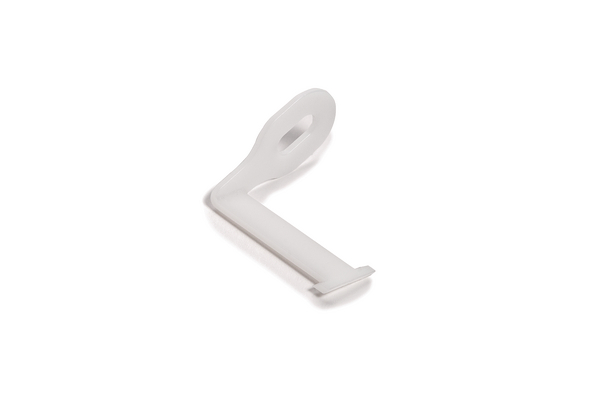

Bundling clip for screw fixation, L=44.6mm, natural, 4000pcs.
Art.-No. 133-04237 | TC90RHANGLE-POM-NA Details

Colour Natural (NA)
Material Polyacetal (POM)
PART DESCRIPTION TC90RHANGLE-POM-NA
Pack Cont. 4000pcs.
Package Content packed in bag
Type TC90RHANGLE
Bundling Bar Length 44.6mm
Height (H) 42.1mm
Length (L) 44.6mm
Weight/Unit 0.002kg
Width (W) 19.5mm
for Hole ∅ (FH) 6.5 x 12.5 mm
CE Certification No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +90 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026626154
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.5m
Packaging 1 - Qty 4000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.032
Packaging 1 - Weight (kg) 8.000001kg
Packaging 1 - Width (m) 0.32m
Packaging 3 - Height (m) 0.20955m
Packaging 3 - Length (m) 0.517525m
Packaging 3 - Qty 4000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0344
Packaging 3 - Weight (kg) 8.610001kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.194m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.146
Packaging 4 - Weight (kg) 193.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121717
