24/12/2024

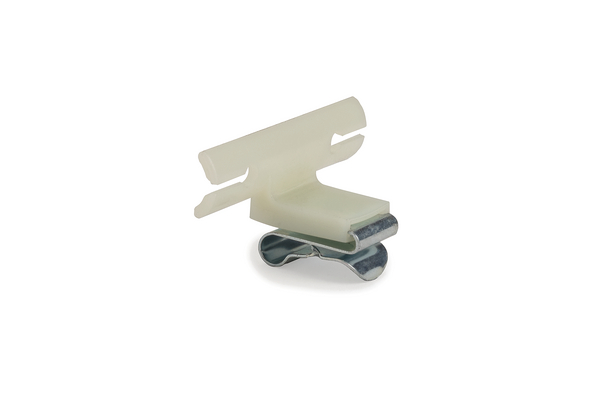

Bundling clip, L=36.25mm, SO=9.2mm, white, 4000pcs.
Art.-No. 133-03800 | TEC48-PA66HIRHS/MET-WH | Details

Tape clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes.

Add to watchlist

Downloads Datasheet

Base Data

Colour	Cream (CM)
Fixation Method	Edge Clip
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Metal (MET)
PART DESCRIPTION	TEC48-PA66HIRHS/MET-WH
Pack Cont.	4000pcs.
Package Content packed in	box
Type	TEC48

Product Dimensions

Bundle Diameter max (metric)	7.8mm
Bundle ∅	7.8mm
Bundling Bar Length	36.25mm
Diameter (D)	4.0mm
Height (H)	7.5mm
Length (L)	15.1mm
Length (L2)	36.2mm
Offset Length	9.2mm
Panel Thickness max.	0.8 - 2.0mm
Width (W)	9.9mm
Width (W2)	15.1mm
for Panel Thickness min - max	0.8 - 2 mm
∅ D	0.16"

Downloads

Specifications

CE Certification	No
CSA Certified	No
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026715018
Packaging 3 - Height (m)	0.1603502m
Packaging 3 - Length (m)	0.5159502m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0282m³
Packaging 3 - Weight (kg)	10.02kg
Packaging 3 - Width (m)	0.3413252m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
