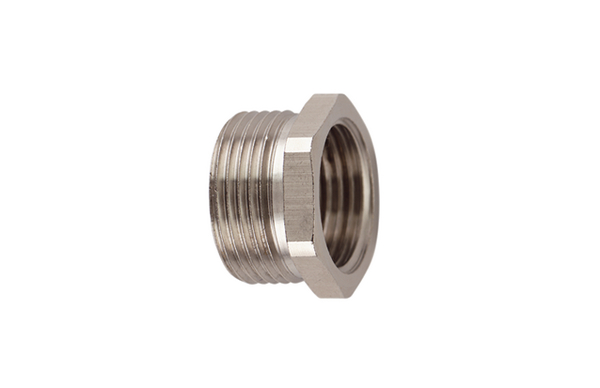

Accessory, HelaGuard, metal, 10pcs. (CNV-075-M25)
Art.-No. 166-90423 | CNV-075-M25-NPB-ML |  Details

    Add to watchlist
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    PART DESCRIPTION CNV-075-M25-NPB-ML
    Pack Cont. 10pcs.
    Package Content packed in pack
    Type CNV-075-M25
    Variant Converter
    Bore Diameter (Imperial) 1.26"
    Bore Diameter (metric) 31.9
    Height (H) 29.0mm
    Length (L) 39.9mm
    Nominal ∅ 0.75"
    Nominal ∅ 25mm
    Thread Length (TL) 8.0mm
    Thread Length (TL) (Imperial) 0.31"
    Thread Size M25
    Thread Size external 15.0 mm
    Wrenching Flat Size (Imperial) 0.76"
    Wrenching Flat Size (Metric) 19.4mm
    Operating Temperature -50 °C to +300 °C
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520971
    UNSPSC Key 39131707
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
