Accessory for IWS, grey, 20pcs. (CTCC-IWS50-MB65)
Art.-No. 169-22003 | CTCC-IWS50-MB65-PA66/6HIRHS-GY | Details

Compatible with the IWS corrugated tubings
Safe and fixe hold of the corrugated tubing
Easy closing and reopening of the lid
Cable tie holder on both sides
Pre-fixation of the corrugated tubing in open status
Can be fixed with screws and matched to the mounting rails of the control cabinets
Additional laying - a ground cable on the corrugated tubings possible (through recess in the cover)
Self-extinguishing according to UL94 HB

More products in this product group:

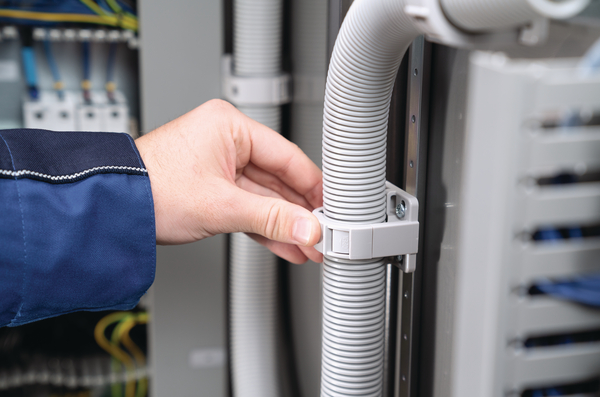

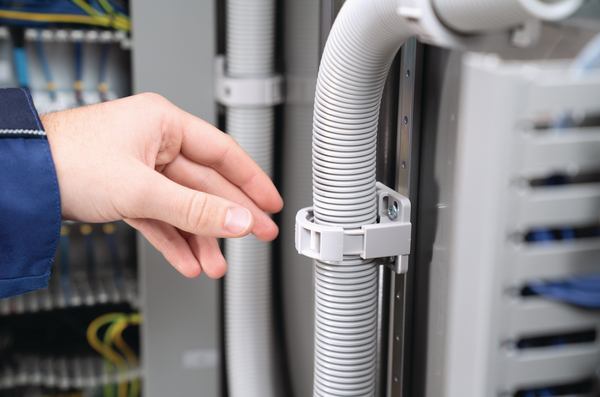

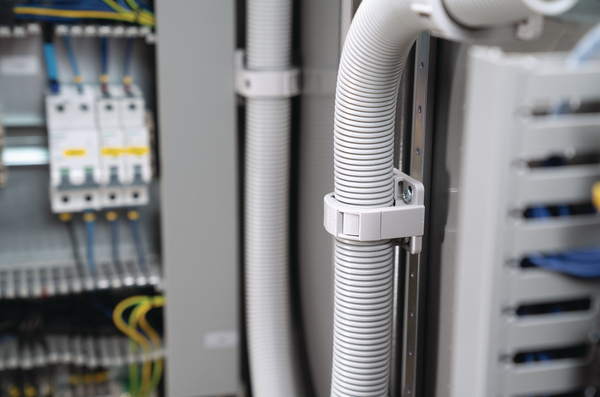

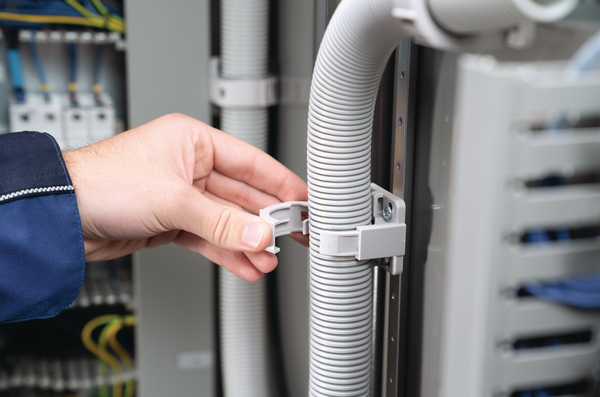

Application	CTCC IWS corrugated tubing holders are used in the control cabinet for fastening and guiding.
Colour	Grey (GY)
Fixation Method	screw-hole
Material	Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS)
PART DESCRIPTION	CTCC-IWS50-MB65-PA66/6HIRHS-GY
Pack Cont.	20pcs.
Package Content packed in	bag
Product Family	CTCC IWS corrugated tubing holder
Product Group	Corrugated tubing holder
Short Description	CTCC IWS corrugated tubing holders
Type	CTCC-IWS50-MB65

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
Suitable for protective housing	Yes
Tackable	No
With inlay	No
