RBU 50 Pair Closure
Art.-No. 857-10050 | RBUTB-AXXEXXX | Details

More products in this product group:

Content	RBU 11 Port Base A-Length Cover Quick Release Clamp Sealing 'O' Ring Desiccant Cable Ties
Cover Type	RBU
Method of Sealing	Cablelok, Heatshrink
PART DESCRIPTION	RBUTB-AXXEXXX
Package Content packed in	box
Port	LM, B, R
Port count	11
Product Group	RBU 50 Pair Closure

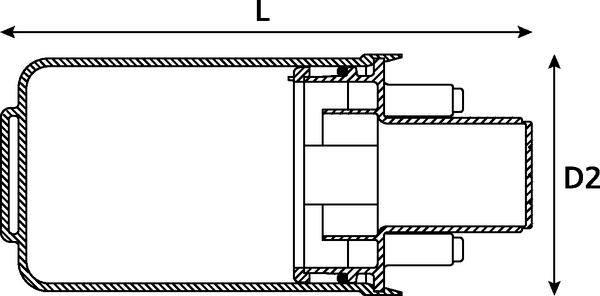

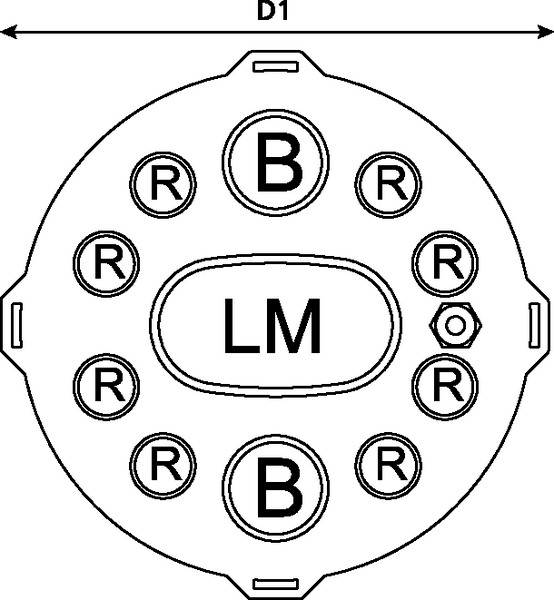

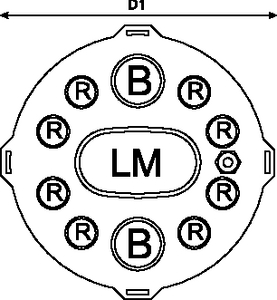

Technical Description	The RBU closure is supplied with a Polypropylene base. A single configuration of 10 round ports and 1 oval port which covers a cable diameter of 1.7 - 16.5mm for the 13 and 4 port base when using Cablelok mechanical seals and 6.0 - 22.0mm for the 13 port base and 6.0 - 24.0mm for the 4 port base when using heatshrink (R ports excluded). The cover diameter and length are 130 x 269mm and the closure has a maximum capacity of 50 copper pairs.
Type	RBUTB-AXXEXXX
