Keystone Jacks
Art.-No. 852-25085
| RJ45FC6
|
Details
| Application | When using HellermannTyton’s modular jacks, patch panels, and patch cords with approved horizontal cables, the GigaBand® Category 6 and MegaBand® Category 5e systems far exceed the TIA requirements for structured cabling systems. HellermannTyton’s modular jacks are an integral part of the Category 6 and Category 5e systems, offering quality, versatility and reliability. Quality • Standard keystone style interface • RJ45 terminated to a 110 IDC PCB connector • Jack life a maximum of 1,000 insertions • Contact set constructed of phosphor bronze material with 50 micro-inch gold plating • Components manufactured from UL94V-0 thermoplastic material • Unique strain relief design secures cable terminations • Innovative crosstalk cancellation technology – 10 internal contacts (two extra to cancel out crosstalk) and 8 external contacts in standard configuration to accept industry standard patch cords • Staggered contacts provide superior performance Versatility • Configured with both 568A and 568B wiring schemes • IDC accepts 22-26 AWG solid twisted-pair cable • Available in 12 colors to match any faceplate or color coding identification • Palm tool available for easy on-site installation Reliability • RJ45 jacks are factory tested 200 times with an RJ11 plug (4P or 6P) to ensure there is no damage to the contacts. • Each jack is individually tested three times to ensure quality performance • IDC is factory tested to 50 terminations |
| Colour | Office White (OEWH) |

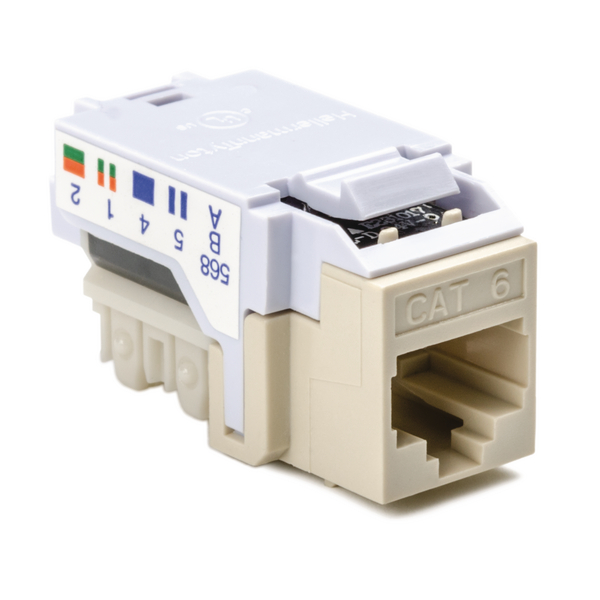

| Description | HellermannTyton's Category 6 modular Keystone Jack is designed to future proof installations. Its patented contact design uses innovative alien crosstalk cancellation technology, ensuring industry leading performance. Adapters are available to enable the Category 6 Keystone Jack to be assembled with the GigaBand/Alpha Snap shuttered outlet and 6C Angled Module. The Category 6 keystone jacks are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system. |
| PART DESCRIPTION | RJ45FC6 |
| Pack Cont. | 50pcs. |
| Package Content packed in | box |
| Performance Category | Category 6 (Class E) |
| Port count | 1 |
| Product Family | Category 6 Jacks |
| Product Group | Keystone Jacks |
| Technical Description | Available in the following colours: W(White), FW(Office White), I(Ivory), GRN(Green), RED(Red), BLU(Blue), BRN(Brown), YEL(Yellow), ORN(Orange), GRY(Grey) and BLK(Black). Bulk packs of 50 keystone jacks are available on request. The Category 6 Keystone Jacks are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The Category 6 Keystone Jacks offer backward compatibility with Category 5e, Category 5 and voice products. |
| Type | RJ45FC6 |
RJ45FC6
852-25068
RJ45FC6-I
852-25072
RJ45FC6
852-25062
RJ45FC6-BLK
852-25064
