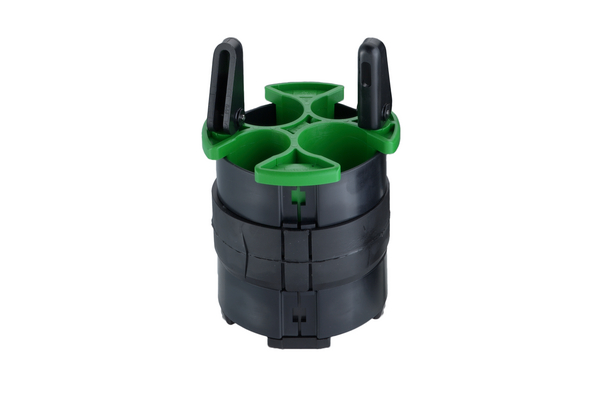

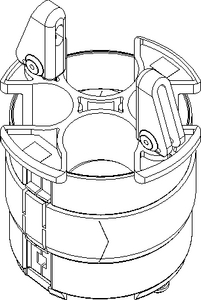

Divisible sealing and fixing discs.
Art.-No. 875-00023 | AdSe-t_110x3.4-PVC-GN | Details

More products in this product group:

Application	With the divisible AdSe-t sealing and retaining discs, the remaining cavity between cable duct tube or pipe section and multiple tube is sealed and secured at the same time. The shaped parts are gas and watertight to 0.5 bar and are also suitable for retrospective installation on multiple tubes containing pulled-through cables. Available for the combination of PE duct and steel pipe, PP duct and cable duct blocks (KKF), PVC duct and split duct (KKHR) as well as PVC duct only.
Application Method	PP pipe 110 x 3.4 / KKF 110
Colour	Green (GN)
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	AdSe-t_110x3.4-PVC-GN
Pack Cont.	20pcs.
Package Content packed in	carton
Product Family	AdSe-t 110x3,4
Product Group	Divisible sealing and fixing discs.
Type	AdSe-t_110x3.4

Diameter (D)

110mm
