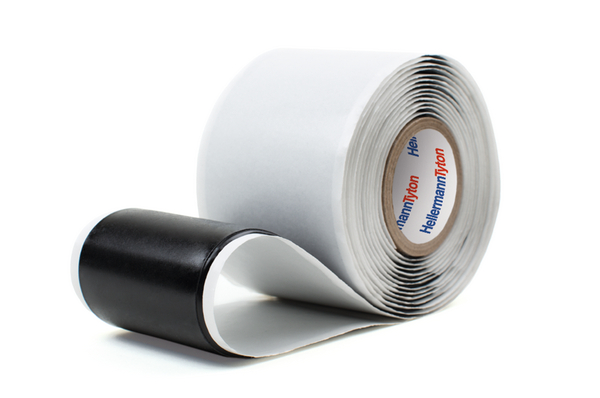

Self-amalgamating low voltage rubber-mastic tape 50.8 mm x 3 m black
Art.-No. 711-00307
| HTAPE-POWER 660-RM-EPR/IIR-BK
|
Details
- Self-amalgamating rubber mastic tape
- EPR backing coated with a tacky, temperature-stable mastic adhesive
- Designed for electrical insulating and moisture sealing applications
- Can be used as cable jacket replacement
- Perfect adhesion and sealing for copper and aluminium wires
- Easily suitable to irregular shapes and surfaces
- Compatible with all extruded cable insulations
- UV, moisture, corrosion and chemical resistant
- Primary electrical insulation for bus bar connections rated up to 35 kV
- Excellent for repairing e.g. damaged cable sheats against moisture ingress, where finishing with some layers of Helatape Flex will do the mechanical protection
More products in this product group:
| Application | HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on. |
| Colour | Black (BK) |
| Material | Ethylene Propylene Rubber (EPR), Isobutene-Isoprene-Rubber (butyl rubber) (IIR) |
| PART DESCRIPTION | HTAPE-POWER 660-RM-EPR/IIR-BK |
| Pack Cont. | 3m |
| Package Content packed in | reel |
| Product Family | HelaTape Power 660 RM |
| Product Group | Self-amalgamating Tapes – Rubber Mastic Tape |
| Short Description | Self-amalgamating low voltage rubber-mastic tape 50.8 mm x 3 m black |
| Type | HTAPE-POWER 660-RM |
Download
| Dielectric Strength | 19.7kV/mm |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 980% |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Intermittent Operating Temperature | +130°C |
| Operating Temperature | -30 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 1.5N/mm² |
| UV-Stabilised | Yes |
| Water Absorption | 0.1% |
|
|
|
| Country of Origin | CN |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026432946 |
| Packaging 1 - Height (m) | 0.115m |
| Packaging 1 - Length (m) | 0.115m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00089m³ |
| Packaging 1 - Weight (kg) | 0.340833kg |
| Packaging 1 - Width (m) | 0.067m |
| Packaging 3 - Height (m) | 0.17m |
| Packaging 3 - Length (m) | 0.355m |
| Packaging 3 - Qty | 12 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0153m³ |
| Packaging 3 - Weight (kg) | 4.59kg |
| Packaging 3 - Width (m) | 0.254m |
| Packaging 4 - Height (m) | 1.165m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 648 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.118m³ |
| Packaging 4 - Weight (kg) | 268.86kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
