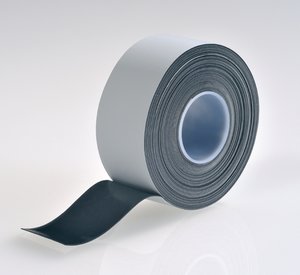

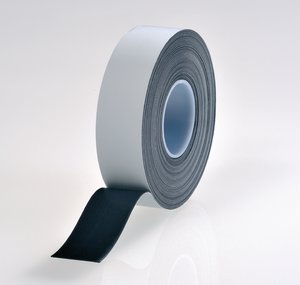

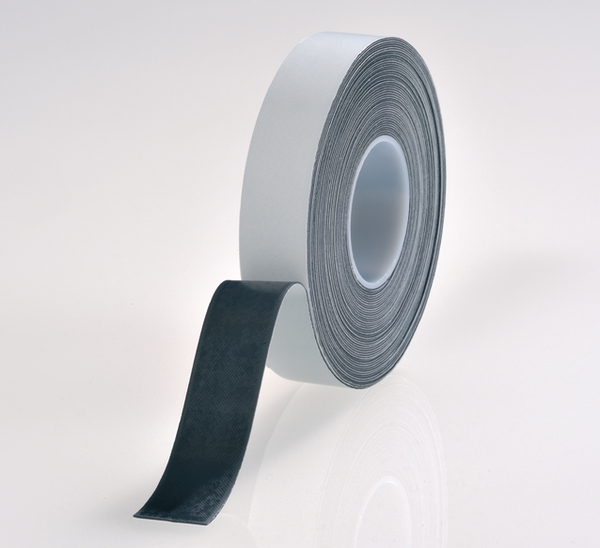

Self Amalgamating Tape 0.51mm thick / 19mm x 9.1m black
Art.-No. 711-00500
| HTAPE-POWER900-EPR-BK
|
Details
This product is not available anymore.
Alternative product available
- Ethylene propylene rubber-based high-voltage tape
- Superior electrical, chemical, mechanical and thermal properties
- Fuses quickly to a void-free, electrically stable layer
- Insulating and jacketing splices on power cables up to 138 kV
- Building stress cones and termination jackets for cables up to 35 kV
- Outstanding corona, ozone, chemical and corrosion resistance
- Withstands UV and cable impregnants
More products in this product group:
| Application | HellermannTyton offers a wide range of products for bundling, insulating, sealing and labeling cables and wires. PVC insulation tapes for low-voltage applications are available in various colors and dimensions. Self-welding, rubber-based tapes are ideal for insulating and sealing cables and connections from low to high and extra-high voltage ranges. HelaTape Tex fabric tapes are versatile and easy to write on. |
| Colour | Black (BK) |
| Material | Ethylene Propylene Rubber (EPR) |
| PART DESCRIPTION | HTAPE-POWER900-EPR-BK |
| Pack Cont. | 1m |
| Package Content packed in | reel |
| Product Family | HelaTape Power 900 |
| Product Group | Self-amalgamating Tapes – Extra High Voltage Rubber Tape |
| Short Description | Self Amalgamating Tape 0.51mm thick / 19mm x 9.1m black |
| Type | HTAPE-POWER900 |
| Dielectric Strength | 38kV/mm |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 880% |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Intermittent Operating Temperature | +130°C |
| Operating Temperature | +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Suitable for high voltage (Yes/No) | Yes |
| Tensile Strength | 3.5MPa |
| Tensile Strength | 3.1N/mm² |
| UV-Stabilised | Yes |
| Volume Resistance | 10¹⁶ Ω cm |
| Water Absorption | 0.02% |
| Country of Origin | ES |
| Customs Number | 40082190 |
| GTIN-13 / EAN | 4031026405872 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00029m³ |
| Packaging 1 - Weight (kg) | 0.145kg |
| Packaging 1 - Width (m) | 0.12m |
| Packaging 3 - Height (m) | 0.16m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Qty | 64 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0116m³ |
| Packaging 3 - Weight (kg) | 9.799kg |
| Packaging 3 - Width (m) | 0.19m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2688 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 432.566kg |
| Packaging 4 - Width (m) | 0.8m |
