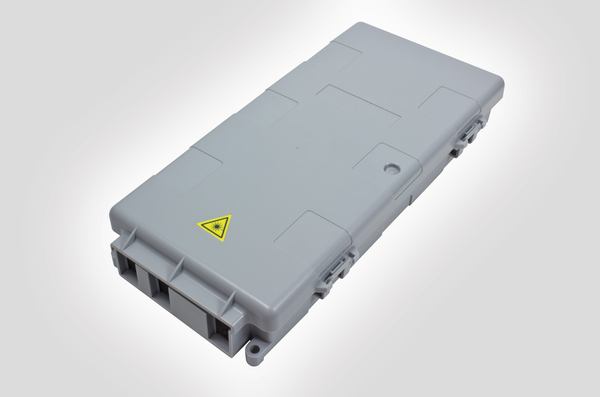

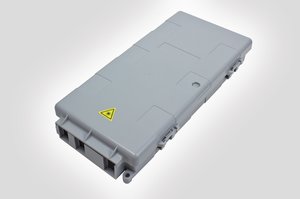

Customer Connection Enclosure
Art.-No. 857-01322 | CCE-A11121AXX/GY |  Details

Customer Connection Enclosure with 1 LC APC adaptor.

    • 1 x LC/APC Duplex Adaptor
    • Fibre Management for 4 x 3A splices
    • Integral positive fibre management and storage capacity
    • 6 inbound/outbound access points (2 x 6.0-8.5mm and 1 x 2.5 - 6.5mm)
    • Through the wall capability
    • Loop through facility
    • IP55 Rated
    Show more
    Add to watchlist
    Downloads CAD-Download
    Application The Customer Connection Enclosure (CCE) has been designed to be used as an external building entry point. The closure can be wall mounted providing a fibre termination and external network test point. The CCE has been designed to be the same size as a 'Brick Blow-Out Cover' to cover any unslightly damage caused by drilling.
    Cable ∅ max 8.5mm
    Cable ∅ min 2.5mm
    Colour Grey (GY)
    Connector Colour Green (GN)
    Connector Type LC-APC
    Content 1 x LC/APC Duplex Adaptor
    Cable Entry Kit 2 x 6.0 - 8.5mm/1 x 2.5 - 6.5mm
    Mechanical Fixing Kit
    Wall Mounting Kit
    Laser Label
    Installed Adapters 1
    Material Acrylonitrile Butadiene Styrene, UV-stabilised (ABSUV)
    PART DESCRIPTION CCE-A11121AXX/GY
    Pigtail Cable Capacity 0
    Product Family Fibre Optic External Enclosure
    Product Group Customer Connection Enclosure
    Splice Capacity 4

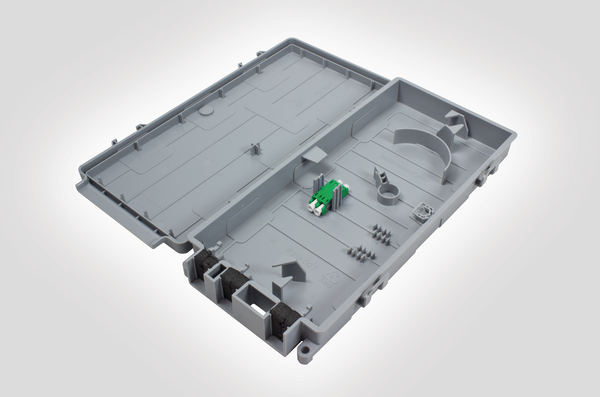

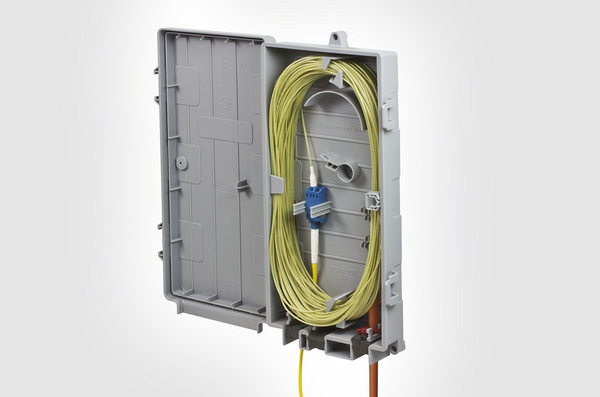

    Technical Description The Customer Connection Enclosure (CCE) is supplied with 1 x LC/APC Duplex Adaptor. The closure is manufactured from UV stable ABS with a hinged lid which locks in the open position to allow for quick and clear access to the internal fibre. The closure has 6 entry/exit ports at the bottom of the closure and is supplied with 3 cable entry seals 2 x 6.0-8.5mm and 1 x 2.5 - 6.5mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. A single port in the rear of the closure allows for fibre to be passed through the wall into the customer premises. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout for up to a maximum of 50m of 1.1mm diameter cable.
    Type CCE-A11121AXX/GY
    Variant Outdoor FTTx Enclosures
    Depth (D) 37mm
    Height (H) 263mm
    Width (W) 130mm
    Country of Origin GB
    GTIN-13 / EAN 5022660161827
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
