19/12/2024

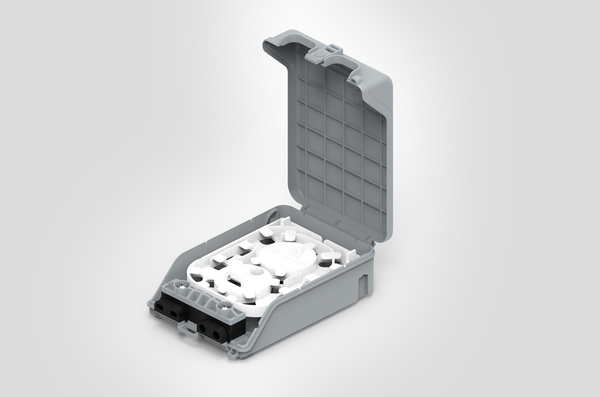

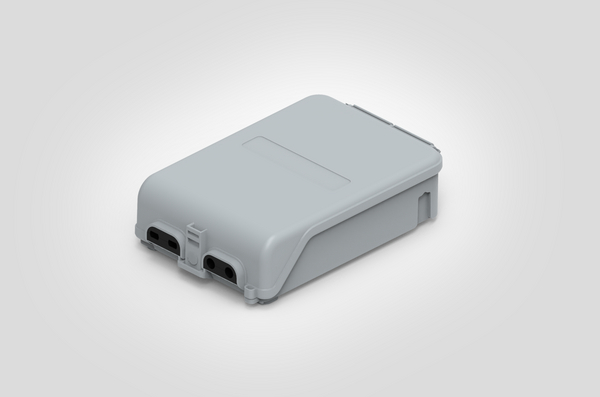

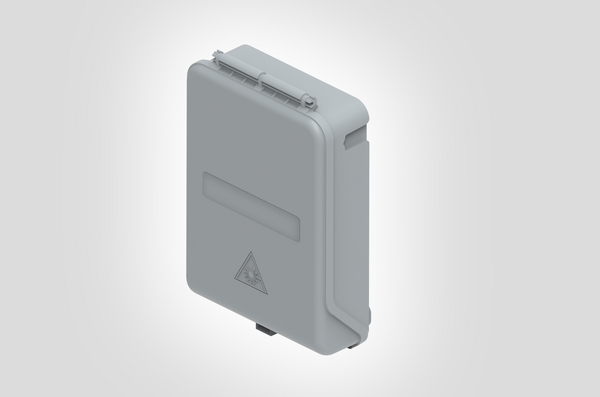

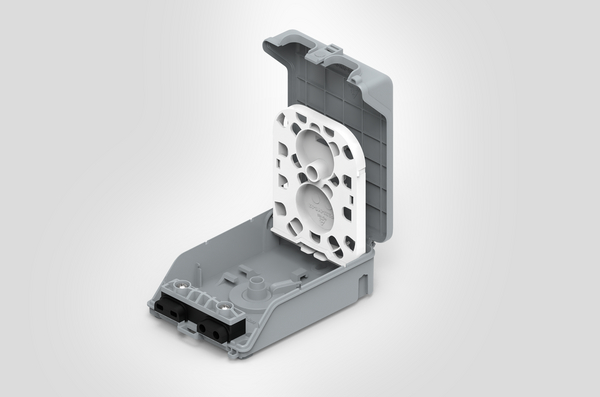

Splice Only External Fibre Enclosure
Art.-No. 857-02697 | CEP-BLANK-GY |  Details

CEP in grey.

    • Fibre management for 2 x 3A splices (or 5A splices)

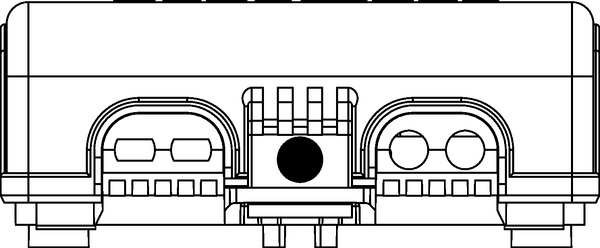

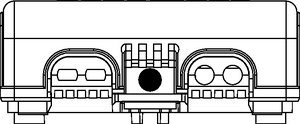

    • Maximum of 2 entry ports / 2 exit ports at the base
    • 1 entry/exit port at the rear max. 7.2mm
    • Physical separation of fibre storage area
    • Integral positive fibre management
    • IP55 rating
    • UV stable
    • Tamper-proof snap on lid
    • Wall/façade and TobyBox300 fixing point
    • Full Range of accessories
    Show more
    Add to watchlist
    Downloads CAD-Download
    Cable ∅ max 7.2mm
    Colour Grey (GY)
    Content 1 x CEP Enclosure
    Mounting Kit
    PART DESCRIPTION CEP-BLANK-GY
    Product Family Fibre Optic External Enclosure
    Product Group CEP - Customer Entry Point
    Short Description Splice Only External Fibre Enclosure
    Splice Capacity 2

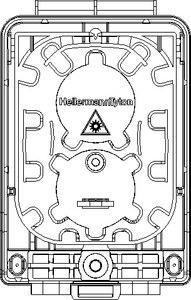

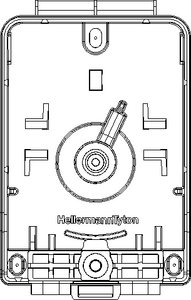

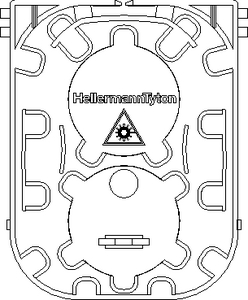

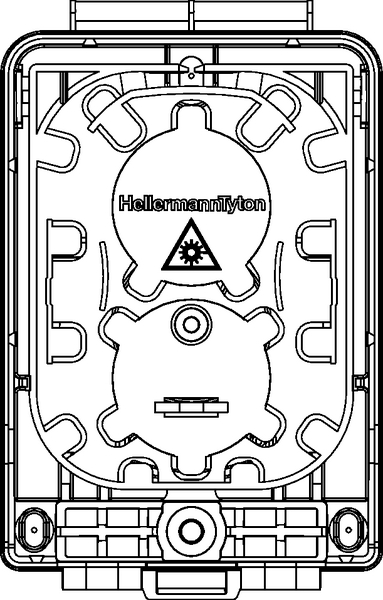

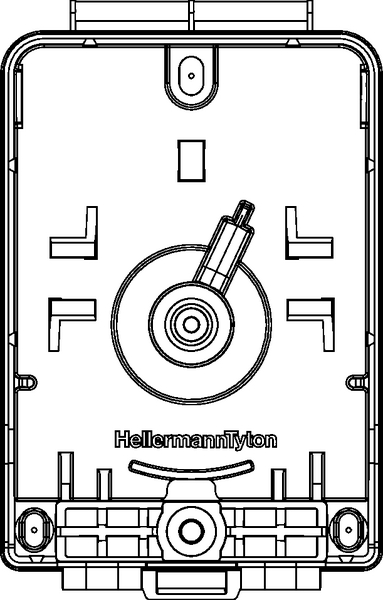

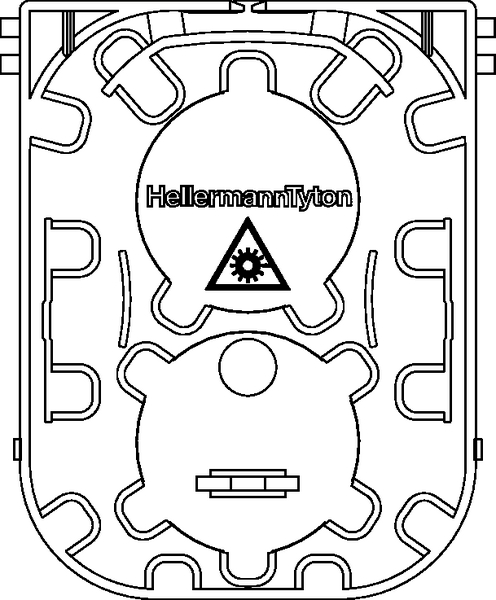

    Technical Description The CEP is an external building entry point which provides access to the FTTH network external to the customer property. Designed to be housed inside the Toby Box 300 or mounted on a wall/façade, its compact size reduces the physical footprint of the enclosure on the property whilst maintaining all the functionality of a larger enclosure. The Customer Entry Point is IP55 rated and has a maximum of 4 entry/exit ports at the bottom. A range of seal options are available including for flat cables (up to 5.4mm x 3.0mm) and round cables (up to 7.2mm). The base is moulded with integral fibre management routing to ensure positive fibre management for G657.A1 and A2 fibre. The base will manage a maximum of 1.2m of flat cable and 1.35m of round cable. A single entry/exit port at the rear of the closure allows for fibre to be passed through the wall into the customer premises when the enclosure is wall/façade mounted. The TobyBox300 option has provision for a mounting screw to allow for the CEP to be fitted onto the TobyBox300 lid. A removable splice management tray sits above the inbound cable management area and the fibres are routed from the cable management area on to the splice management tray. The splice tray accommodates 2 x 3A or 5A splices (max length of 40mm) and are positioned to enable bidirectional and positive fibre management for 250μm fibre.
    Type CEP-BLANK-GY

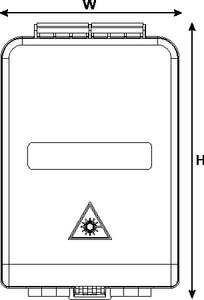

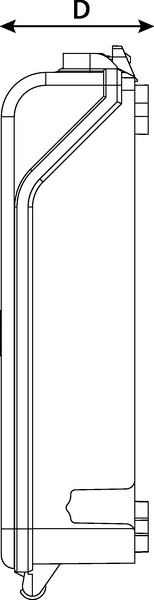

    Depth (D) 33mm

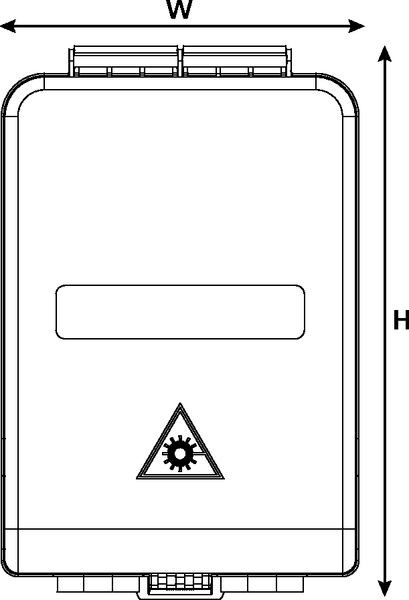

    Height (H) 124.8mm
    Width (W) 80.6mm
    Country of Origin CN
    GTIN-13 / EAN 4031026742588
    ETIM 7.0 Key EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
    Show all
