CPU with 2 cable entry points and PG9/PG16 glands
Art.-No. 857-00352
| CPU3865
|
Details
- Maximum splice capacity of 24 fibres
- 2 cable entry points
- 2 piece box allows easy access to fibre
- Cable loop storage capacity
- IP56 rated
More products in this product group:
| Cable ∅ max | 14mm |
| Cable ∅ min | 4mm |
| Colour | Grey (GY) |
| Content |
Customer Premise Unit Box Hellafos Tray Cable Loop Storage Spool Cable Glands Transport Tubing Markers Green 1 - 12 Red 1 - 12 |
| PART DESCRIPTION | CPU3865 |
| Package Content packed in | kit |
| Product Family | Fibre Optic Internal Enclosure |
| Product Group | CPU - Customer Premise Unit |
| Qty Trays | 1 |
| Short Description | CPU with 2 cable entry points and PG9/PG16 glands |

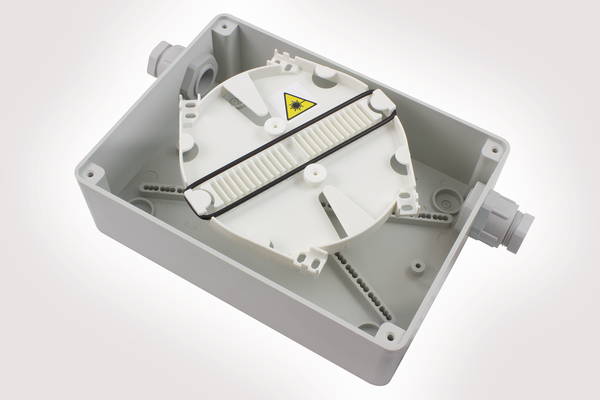

| Technical Description | The Customer Premise Unit has been designed for the organisation and protection of fibre optic splices in internal and sheltered environments. The 2 piece polystyrene box is available with either 2 or 4 cable entry points with a total of 4 entry points and cable gland size options to choose from. Each box is fitted with a single Hellafos splice tray which is mounted on a cable loop storage spool and can achieve a maximum 24 fibre splice capacity when using a 3A heatsrink splice protector. |
| Type | CPU3865 |
| Type of Gland | PG16, PG9 |
| Type of Tray | Hellafos |
