MDU S3 with SE-IR trays and LC DX PC Adaptors
Art.-No. 857-01487 | MDU-S3-XWX-CP12LA1 | Details

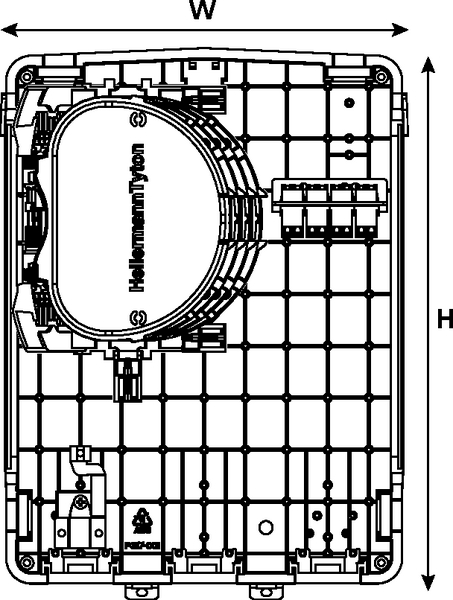

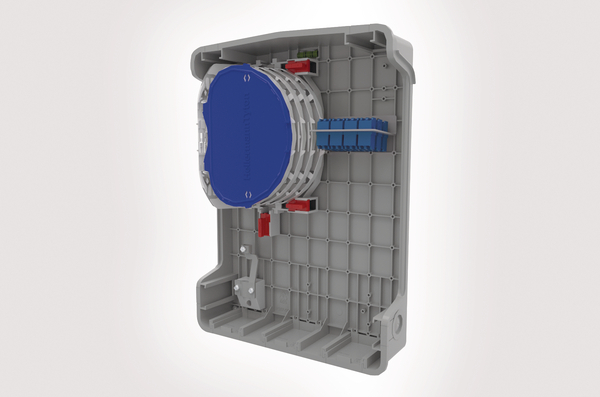

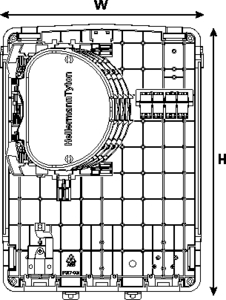

Internal view of the MDU - S3 Connectorise dEnclosure.

Maximum 48 Fibre Splices
24 LC PC Connections
250µm IR Angled Fibre Management System with provision for 3 PLC Splitters
4 SE-IR Trays with 3A Splice Bridges
3 x Entry/Exit Port Blanks
Strength Member Anchor
In-built spirit level
IP54/IK08
UV Stable
V0 Rating

Add to watchlist

Downloads CAD-Download

More products in this product group:

S3 Series MDU/MBU Enclosures >

Base Data

Application	Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
Adapter Capacity	12
Colour	Grey RAL 7035 (RAL7035)
Connector Colour	Blue (BU)
Connector Type	LC
Content	S3 Enclosure 250µm IR Fibre Management System 4 SE-IR Trays with 3A Splice Bridges Adaptor Plate 12 LC PC Duplex Adaptors 24 LC PC Pigtails 3 x Entry/Exit Port Blanks Cable Anchor In-built spirit level Fibre Picker Wall Mounting Kit Red and Green Polyspiral Tubing(2M)
Installed Adapters	12
Material	Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION	MDU-S3-XWX-CP12LA1
Pack Cont.	1pc.
Package Content packed in	EA
Port count	7
Product Family	Fibre Optic External/Internal Enclosure
Product Group	S3 Series MDU/MBU Enclosures
Qty Trays	4
Short Description	MDU S3 with SE-IR trays and LC DX PC Adaptors
Splice Capacity	48
Technical Description	The S3 enclosure is configured with the HellermannTyton 250µm IR Management System. The management system accommodates 4 SE-IR trays giving a maximum of 48 3A fibre splices and 3 PLC splitters. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. An LC Duplex adaptor connection plate is fitted with 12 LC PC duplex adaptors and 24 pigtails to provide 24 customer connection points. The LC PC pigtails are routed on to the fibre management trays to be spliced to the incoming fibre. The enclosure is 340 x 247 x 76mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 7 input/output ports, 3 across the bottom, 2 on the top and 1 on each side, each port will accommodate a 20mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
Type	MDU-S3-XWX-CP12LA1
Type of Tray	Integrated Routing SE, 250µm
Variant	Indoor/Outdoor FTTx Enclosures
