BSHDWV-PA6-BK
Art.-No. 170-03203 | BSHDWV-PA6-BK |  Details

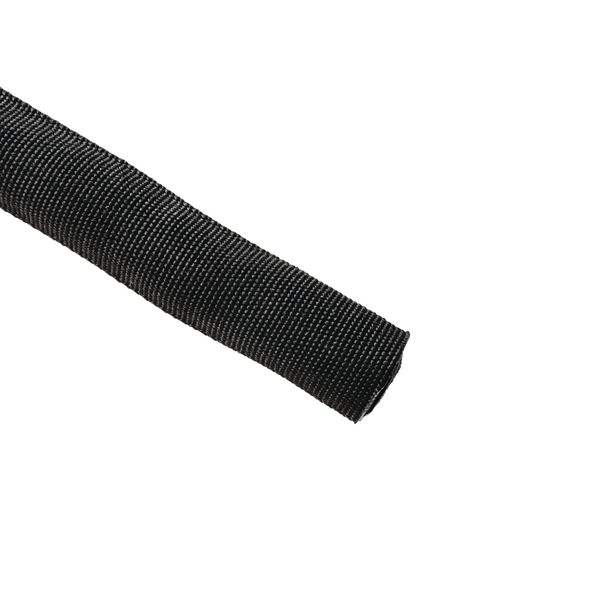

Tightly woven fabric bundles and protects cables and hoses from sunlight and abrasion damage.

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6 (PA6)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSHDWV-PA6-BK
    Pack Cont. 15.24m
    Package Content packed in box
    Type BSHDWV
    Bundle Diameter max (metric) 24.1mm
    Bundle ∅ 2.54-24.1mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 25.4mm
    Length (L) 15.24m
    Nominal ∅ 1"
    Nominal ∅ 25.4mm
    Wall (WT) 1.14mm
    Wall (WT) .045"
    ∅ D 1.0"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Operating Temperature -45 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026494616
    Reel Length 50.0ft
    Reel Length 15.24m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
