BSHLR100-E/CTFE-BK
Art.-No. 170-03108 | BSHLR100-E/CTFE-BK |  Details

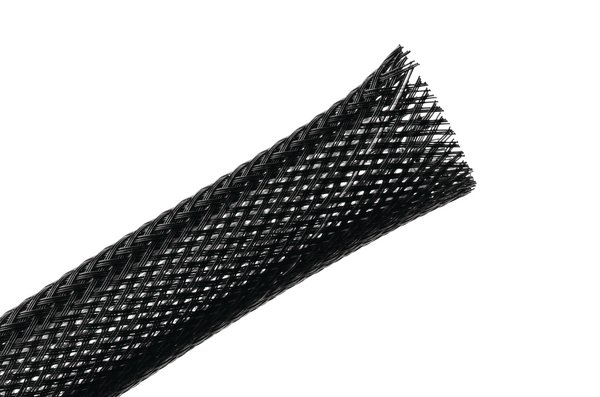

Halar expandable braided sleeving is self-extinguishing and features a monofilament material that resists gasoline and engine chemicals.

    • Meets UL 2024 and NFPA 262 specifications meets requirements for use in plenum applications
    • Technically advanced monofilament material is rated as low smoke, flame resistant and can withstand exposure to Cobal 60 radiation
    • Exceeds requirements of FMVSS 302 as well as aviation industry requirements of FAR25
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Description Halar self-extinguishing sleeving is used where flammability, high temperature endurance and low outgassing are the primary concern.
    Material Ethylene Chlorotrifluoroethylene (E/CTFE)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSHLR100-E/CTFE-BK
    Pack Cont. 19.80m
    Package Content packed in reel
    Type BSHLR100
    Bundle Diameter max (metric) 41.3mm
    Bundle ∅ 15.9-41.3mm
    Bundle ∅ min. 15.9mm
    Diameter (D) 25.4mm
    Length (L) 19.8m
    Nominal ∅ 1"
    Nominal ∅ 25.4mm
    ∅ D 1.0"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL VW-1, FAR 25
    Halogen-free No
    Melting Point +250 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Specifications ANSI/UL 746B, UL 1441, UL 2024, UL 746A
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E107055
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026443065
    Packaging 1 - Weight (kg) 0.65kg
    Reel Length 65.0ft
    Reel Length 19.8m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
