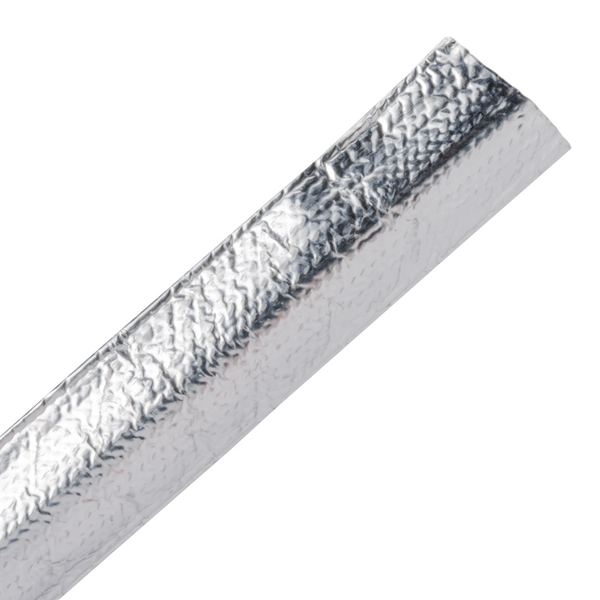

Aluminum Laminated Fiberglass-High Temperature
Art.-No. 170-03062 | BSHTTST12SR-AL/GF-SR |  Details

    • A layer of aluminum provides protection from chemicals, scraping, cuts and abrasion
    • Additional layer also provides insulation barrier for vulnerable wires and cables within high temperature environments
    • Cuts with ordinary scissors for fast, easy application
    Add to watchlist
    Downloads Datasheet
    Colour Silver (SR)
    Description A tubular shaped sleeving product that combines the protection of bonded aluminum and fiberglass into a single solution that is able to deflect radiant heat away from sensitive components inside the tube.
    Material Aluminium (AL), Glass-fibre (GF)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSHTTST12SR-AL/GF-SR
    Pack Cont. 30.48m
    Package Content packed in reel
    Product Group Aluminum Laminated Fiberglass-High Temperature
    Type BSHTTST12SR
    Bundle Diameter max (metric) 11.1mm
    Bundle ∅ 2.54-11.1mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 12.7mm
    Length (L) 30.48m
    Nominal ∅ 0.5"
    Nominal ∅ 12.7mm
    Wall (WT) 0.64mm
    Wall (WT) 0.025"
    ∅ D 0.50"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Melting Point +2048 °F (1120 °C)
    Operating Temperature -60 °C to +255 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026436555
    Packaging 1 - Weight (kg) 1.16kg
    Reel Length 100.0ft
    Reel Length 30.5m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
