19/11/2024

BSHTTSW58SB-GF-AL-SR
Art.-No. 170-03193 | BSHTTSW58SB-GF-AL-SR |  Details

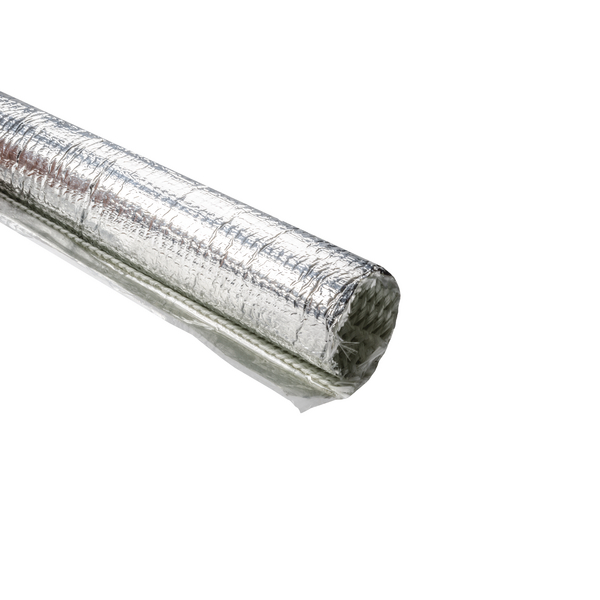

Aluminum laminated fiberglass wrap sleeving combines the protection of bonded aluminum and fiberglass into a robust solution that deflects radiant heat away from sensitive wires and cables.

    • A layer of aluminum provides protection from chemicals, scraping, cuts and abrasion
    • Additional layer also provides insulation barrier for vulnerable wires and cables within high temperature environments
    • Cuts with ordinary scissors for fast, easy application
    Add to watchlist
    Downloads Datasheet
    Colour Silver (SR)
    Description Aluminum Laminated Fiberglass Wrap sleeving combines the protection of bonded aluminum and fiberglass into a robust solution that deflects radiant heat away from sensitive wires and cables. Wrap-around design allows for fast and easy installation and maintenance.
    Material Glass-fibre with aluminium foil (GF-AL)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSHTTSW58SB-GF-AL-SR
    Pack Cont. 20pcs.
    Package Content packed in box
    Type BSHTTSW58SB
    Bundle Diameter max (metric) 12.7mm
    Bundle ∅ 2.54-12.7mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 16.0mm
    Length (L) 1.22m
    Nominal ∅ 0.63"
    Nominal ∅ 16.00mm
    Wall (WT) 1.06mm
    Wall (WT) 0.042"
    ∅ D 0.63"
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    Melting Point +2048 °F (1120 °C)
    Operating Temperature -60 °C to +255 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026490861
    Reel Length 4.0ft
    Reel Length 1.22m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
