19/11/2024

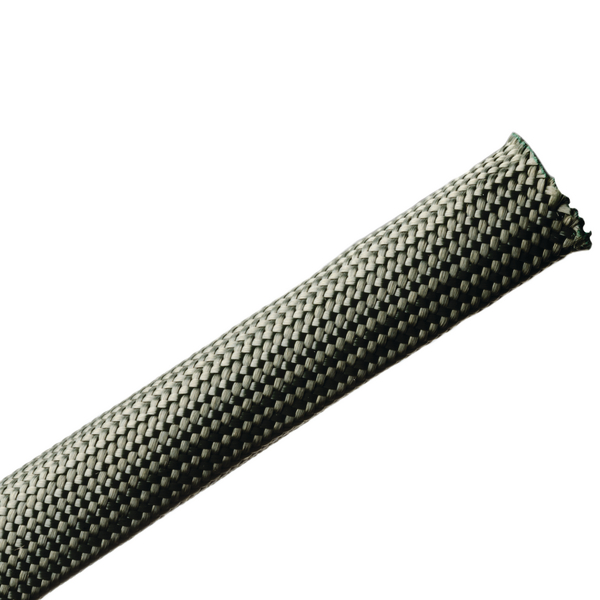

High Temperature Nomex®
Art.-No. 170-03160 | BSNMX385B-PMPI-GN |  Details

High-temperature Nomex® woven sleeving is fabricated using a densely woven aramid fiber, making this soft and flexible material self extinguishing and can withstand temperatures reaching up to 662°F.

    • Self extinguishing material does not melt and is unaffected by most acids, and provides excellent thermal stability against direct flame
    • Meets FMVSS 302 specifications for use in automotive engineering
    • Material cuts with ordinary scissors which reduces assembly time
    Add to watchlist
    Downloads Datasheet
    Colour Green (GN)
    Description A densely woven aramid fiber sleeving, this soft and flexible material is self extinguishing and can withstand temperatures reaching up to 662°F.
    Material Polyaramid Polymetaphenylene Isophthalamide (PMPI)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSNMX385B-PMPI-GN
    Pack Cont. 30.48m
    Package Content packed in reel
    Product Group High Temperature Nomex®
    Type BSNMX385B
    Bundle Diameter max (metric) 12.7mm
    Bundle ∅ 6.4-12.7mm
    Bundle ∅ min. 6.4mm
    Diameter (D) 9.5mm
    Length (L) 30.48m
    Nominal ∅ 0.38"
    Nominal ∅ 9.7mm
    ∅ D 0.38"
    Abrasion Resistance Low
    CE Certification No
    CSA Certified No
    Flammability UL VW-1
    Halogen-free Yes
    Operating Temperature -196 °C to +350 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026444048
    Packaging 1 - Weight (kg) 0.3kg
    Reel Length 100.0ft
    Reel Length 30.5m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
