21/12/2024

PET-General Purpose
Art.-No. 170-03005 | BSP1120-PET-BK Details

  • Weave construction adjusts to twisting and flexing without creating wrinkles or bends
  • Durable construction offers excellent abrasion and cut-through resistance as well as inertness to most chemicals and fungus
  • Color options available to provide easy visual and safety identification of critical wiring components
  • Expands to 150% of nominal diameter for fast, easy installation
Application Standard PET (polyethylene terepthalate) grade braided sleeving is a general purpose and economical material for indoor and outdoor applications. PET braided sleeving provides good resistance against cuts and abrasions, is resistant to chemical degradation and UV radiation. Fllexible, lightweight and durable, PET's construction allows it to expand over a variety of cable shapes and diameter sizes.
Colour Black (BK)

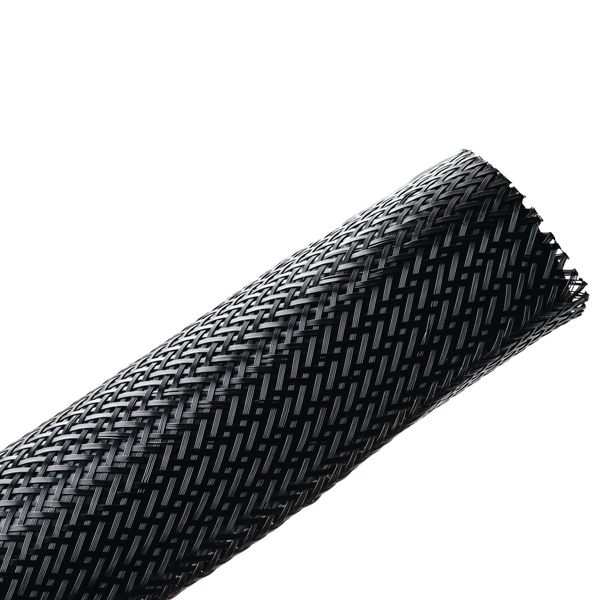

Description General purpose expandable braided sleeving provides flexible abrasion protection for wire bundles and hoses.
Material Polyester (PET)
Open, post termination (Yes/No) No
PART DESCRIPTION BSP1120-PET-BK
Pack Cont. 12.19m
Package Content packed in reel
Product Group PET-General Purpose
Type BSP1120
Bundle Diameter max (metric) 54.0mm
Bundle ∅ 25.4-54.0mm
Bundle ∅ min. 25.4mm
Diameter (D) 38.1mm
Length (L) 12.2m
Nominal ∅ 1.5"
Nominal ∅ 38.1mm
∅ D 1.50"
Abrasion Resistance Medium
CE Certification No
CSA Certified No
Flammability UL 94 V0, FMVSS 302, FAR 25
Halogen-free Yes
Melting Point +250 °C
Operating Temperature -70 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E147924
UV-Stabilised No
Country of Origin US
GTIN-13 / EAN 4031026431895
Packaging 1 - Weight (kg) 0.358kg
Reel Length 40.0ft
Reel Length 12.2m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
