BSP140BSF-PET-BK
Art.-No. 170-03180 | BSP140BSF-PET-BK Details

  • Weave construction adjusts to twisting and flexing without creating wrinkles or bends
  • Durable construction offers excellent abrasion and cut-through resistance as well as inertness to most chemicals and fungus
  • Color options available to provide easy visual and safety identification of critical wiring components
  • Expands to 150% of nominal diameter for fast, easy installation
Application Standard PET (polyethylene terepthalate) grade braided sleeving is a general purpose and economical material for indoor and outdoor applications. PET braided sleeving provides good resistance against cuts and abrasions, is resistant to chemical degradation and UV radiation. Fllexible, lightweight and durable, PET's construction allows it to expand over a variety of cable shapes and diameter sizes.
Colour Black (BK)

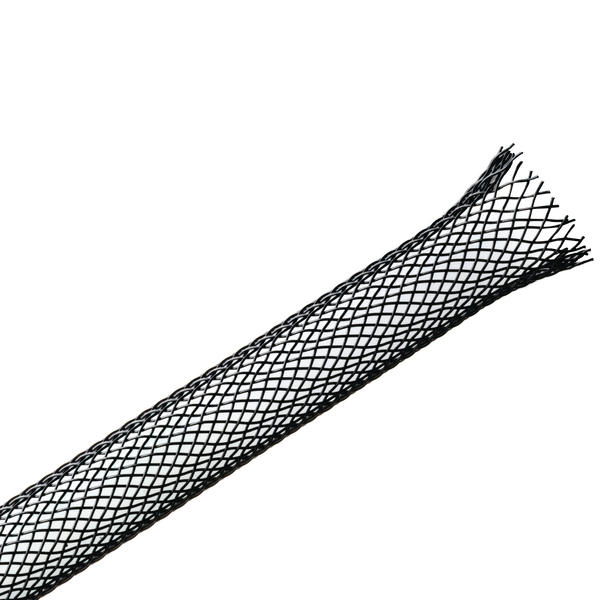

Description General purpose expandable braided sleeving provides flexible abrasion protection for wire bundles and hoses.
Material Polyester (PET)
Open, post termination (Yes/No) No
PART DESCRIPTION BSP140BSF-PET-BK
Pack Cont. 304.80m
Package Content packed in reel
Type BSP140BSF
Bundle Diameter max (metric) 11.1mm
Bundle ∅ 3.2-11.1mm
Bundle ∅ min. 3.2mm
Diameter (D) 10.9mm
Nominal ∅ 0.25"
Nominal ∅ 6.35mm
∅ D 0.437"
CE Certification No
CSA Certified No
Flammability UL 94 V0, FMVSS 302, FAR 25
Halogen-free Yes
Melting Point +250 °C
Operating Temperature -70 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E147924
UV-Stabilised No
Country of Origin US
GTIN-13 / EAN 4031026468532
Reel Length 1000.0ft
Reel Length 304.8m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
