PET-Flame Retardant
Art.-No. 170-03007
| BSPFR120-PET-BK
|
Details
- Treated polyester material contains a combustion inhibitor for use in applications where flame retardancy is required
- Braided design allows sleeving to expand by 150% to accommodate variations in wire bundle and eases installation
More products in this product group:
| Colour | Black (BK) |

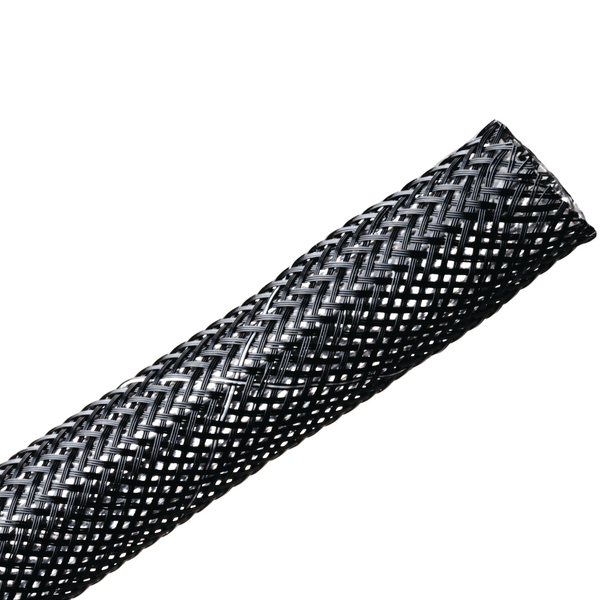

| Description | A flame retardant woven (threaded) polyester sleeving that is resistant to cuts and abrasion, and contains a combustion inhibitor allowing it to achieve a UL and CSA flame resistance rating of VW-1. Contains white tracer thread for easy identification. |
| Material | Polyester (PET) |
| Open, post termination (Yes/No) | No |
| PART DESCRIPTION | BSPFR120-PET-BK |
| Pack Cont. | 30.48m |
| Package Content packed in | reel |
| Product Group | PET-Flame Retardant |
| Type | BSPFR120 |
Download
| Abrasion Resistance | Medium |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 224 VW-1, Mil-202, FAR 25, FMVSS 302 |
| Halogen-free | Yes |
| Melting Point | +250 °C |
| Operating Temperature | -70 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL 94 VW-1 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | No |
| UL-File Number | E147924 |
| UV-Stabilised | No |
